250 OIL SEAL P25OSK MCM 250 Series centrifugal pumps MISSION P/N 20619A

Share to:

250 OIL SEAL P25OSK MCM 250 Series centrifugal pumps MISSION P/N 20619A

Availability:

Quantity:



Inquire Add to Basket

Product Description

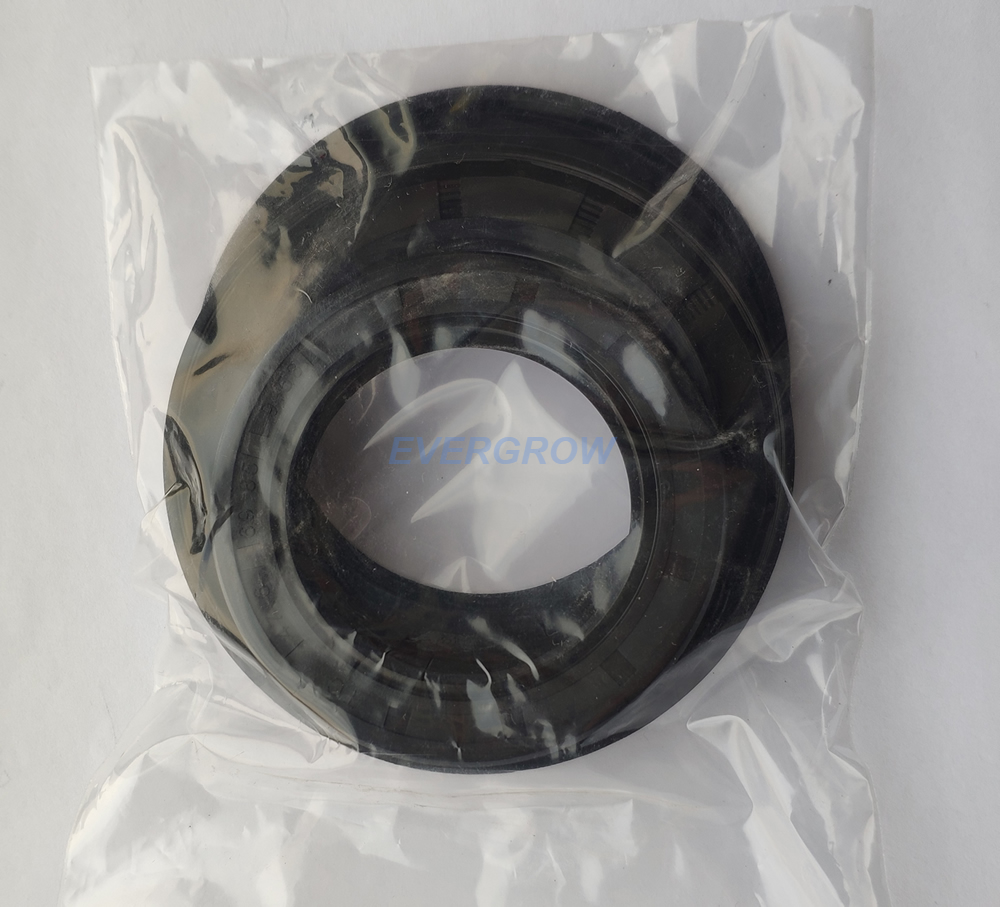

P25OSK OIL&GREASE SEAK KIT MISSION P/N 20619A

20619A oil seal kit

We supply complete centrifugal pump and spare parts. These parts could replace the MCM 250 Series pumps and Mission 2500 supreme / Mission Magnum pumps.

Regular parts list is as below:

Magnum I parts list
ITEM	QTY	MISSION PART No.	DESCRIPTION	MATERIAL
1*	1	See below	Casing
1A	1	10399-46-1	Gasket,casing	Vellumoid
1B	12	3932-61	Nut,casing	Stl
1C	12	3862-76	Stud,casing	Stl
1D	1	8505-04-01	Plug,Casing Drain	Stl
1E	1	8505-04-01	Plug,flush line	Stl
2*	1	See below	Impeller
2A	1	19110-72	Seal,impeller	Viton
2B	1	7300239	Washer,impeller	Stl
2C	1	7415648	Bolt,impeller lock	Stl

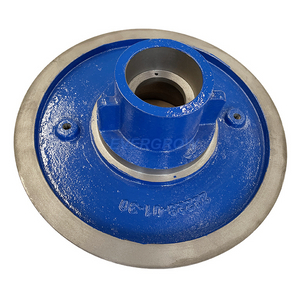

3*#	1	22223-01-30	Stuffing box,mech,seal	Hard Iron
3*&	1	20614-01-30	Stuffing box,packed	Hard Iron
3A	2	3861-117	Bolt,stuffing box	Stl
4	1	20622A	Gland assy,packing	Stl 304

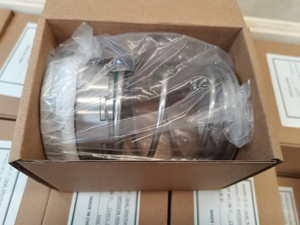

5A#	1	22451-1	Seal,mechanical	Tung/Tung

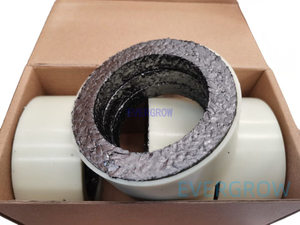

5A#	1	648402600	Packing,Shaft-M.S.backup	Graphite Acrylic
5A#	1	648402600	Packing,Shaft-M.S.backup	Kevlar
5A	1	25014-04M-B	Packing,Shaft-w/latern ring	Graphite Acrylic
6	2	B3701A	Bolt assy,gland	Stl 304

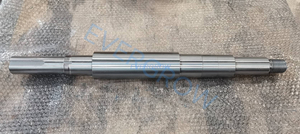

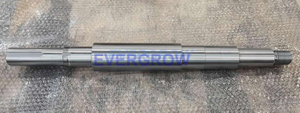

7	1	20612-02-33	Shaft	42CrMo
7A	1	20943-04A	Sleeve,shaft	38CrMoAl
7B	1	4371/5/21	Key,shaft	Stl
7C	1	23444-01-72	Seal,shaft sleeve	Viton
8	1	22210-1A	Deflector assembly	Composite
9	1	20618-12-1	Frame,grease lubricated	Cast iron
9C	1	8505-04-01	Plug,Frame Drain	Stl
9D	1	8267-01	Breather	Stl
9G	3	2538-1H	Bolt,casing jack	Stl
10A	1	20626	Cover,inboard bearing	Iron
10B	1	20625	Gasket,I.B.Brg.Cover	Vegetable fiber
10C	1	20619-01	Oil seal,I.B.Brg.Cover	Buna-n
10D	2	3861-1	Bolt,I.B.Brg.Cover	Stl
10E	2	3932-2	Nut,I.B.Brg.Cover	Stl
10F	1	20620-01	Exclusion seal,I.B. Brg.Cover	Buna-n
10G	1	21641-01	Grease fitting	Stl
10H	1	648411908	Grease fitting	Stl
11	1	661 00901 OA	Bearing,Inboard & Spacer	Roller
11	1	20615-1	Bearing,Inboard	Vendor
12	1	20624-01-01	Housing,O.B.bearing	Iron

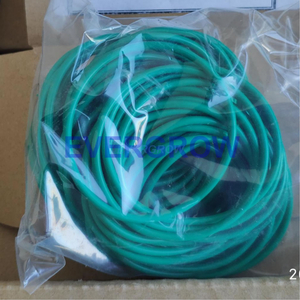

12A	1	7496-253	Seal,O.B.Brg.Housing	Buna-n
12B	4	3861-138	Bolts,O.B.Brg.Housing	Stl
12C	2	3932-62	Nut,O.B.Brg.housing jam	Stl
13	1	20617A	Cover,O.B.bearing	Iron
13A	1	19368-01	Grease zerk,O.B.Brg.Cover	Brass
13B	1	7496-26	O-ring,O.B.Brg.Cover	Buna-n
13C	1	20619-02	Oil seal,O.B.Brg.Cover	Buna-n
13D	2	3861-139	Bolt,O.B.Brg.Cover	Stl

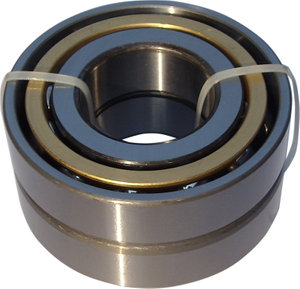

14	2	20616-1	Bearing,O.B.	Vendor
14A	1	6124-4	Lockwasher,O.B.Bearing	Stl
14B	1	6123-4	Locknut,O.B.Bearing	Stl
Casings-includes studs, nuts & gasket
1*	1	19203-01-30A	Casing,3x2x13	Hard Iron
1*	1	19205-01-30A	Casing,4x3x13	Hard Iron
1*	1	19222-01-30A	Casing,5x4x14	Hard Iron
1*	1	19122-01-30A	Casing,6x5x11	Hard Iron
1*	1	19123-01-30A	Casing,6x5x14	Hard Iron
1*	1	19763-01-30A	Casing,8x6x11	Hard Iron
1*	1	19117-01-30A	Casing,8x6x14	Hard Iron
1*	1	20937-01-30A	Casing,10x8x14	Hard Iron
Impellers
2*	1	19204-XX-30	Impellers,3x2x13	Hard Iron
2*	1	19206-XX-30	Impellers,4x3x13	Hard Iron
2*	1	19224-XX-30	Impellers,5x4x14	Hard Iron
2*	1	19121-XX-30	Impellers,6x5x11	Hard Iron
2*	1	19121-XX-30	Impellers,6x5x14	Hard Iron
2*	1	19116-XX-30	Impellers,8x6x11	Hard Iron
2*	1	19116-A0-30	Impellers,8x6x14	Hard Iron
2*	1	21867-XX-30	Impellers,10x8x14	Hard Iron
