Centrifugal Pump Stuffing Box: Operation And Maintenance

A centrifugal pump stuffing box is a critical component in the design of the pump, typically used to provide a seal around the shaft to prevent leakage of the fluid being pumped. The stuffing box is located at the pump's casing where the shaft emerges and is responsible for minimizing fluid leakage while allowing the shaft to rotate freely.

Operation

- When the pump operates, the shaft spins inside the stuffing box. The packing material is compressed against the rotating shaft by the gland.

- The purpose is to create a seal tight enough to prevent leakage of the fluid while allowing for slight movement of the shaft.

Maintenance

- Leakage Management: Small amounts of leakage (often referred to as "drip" leakage) are usually acceptable; this allows for lubrication of the packing.

- Adjustment: Regular checking and adjustments are necessary to ensure optimal sealing without over-compressing the packing (which can lead to premature wear).

- *Replacement: Packing material should be replaced periodically based on wear and leakage rates.

- Lubrication: Some systems require the addition of a lubricant to the packing to extend its life.

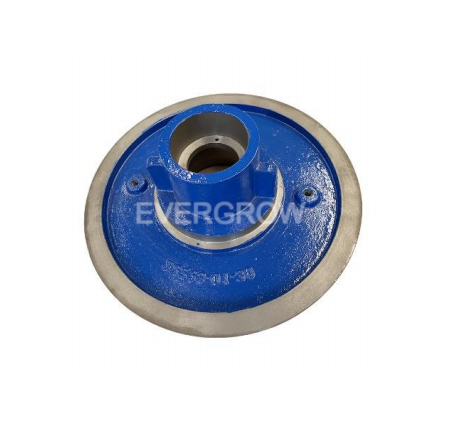

250 Stuffing Box F/Mech. Seal  MCM # P25SB/MS  Mission #22223-01-30A  Halco #H22223-01-30A  Harrisburg #11C-250-SBMSS
