Coupling for EG-250 Centrifugal Pumps And The Electric Motor

I

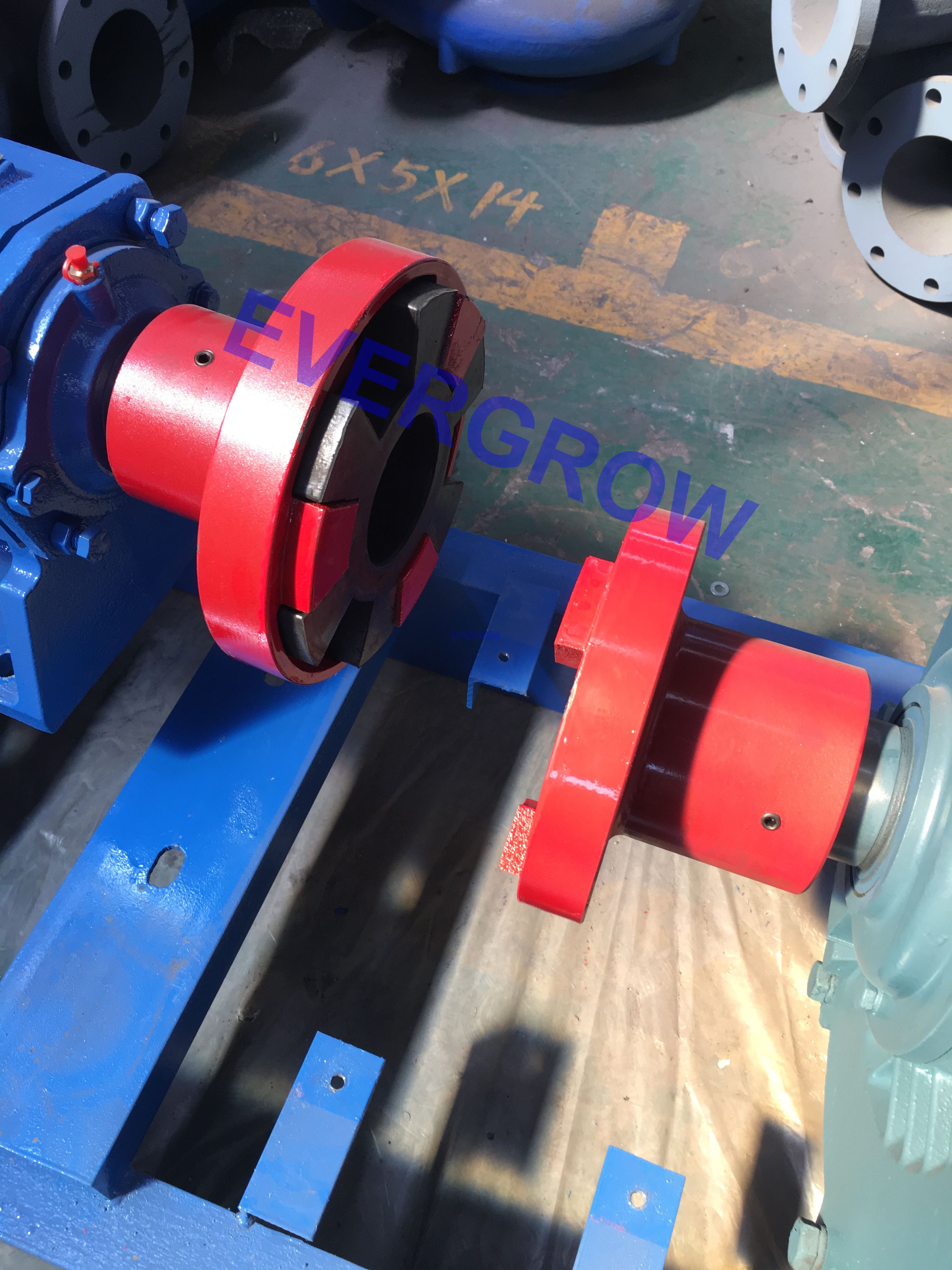

If there is no special requirement, EG-250 Centrifugal Pump skids use the following coupling.

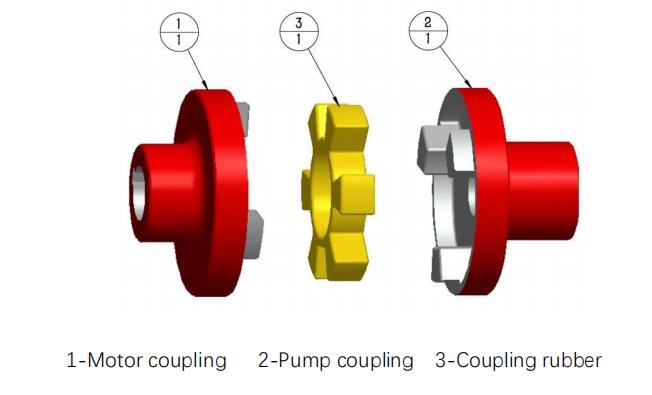

1-Motor coupling 2-Pump coupling 3-Coupling rubber

Good service life of the pump and driver depends upon good alignment through the flexible coupling.If the electric motor was mounted at the factory,the pump and motor were in alignment when shipped.The alignment between the driver and pump should be inspected after installation to ensure that transportation or other handling has not caused misalignment of the unit.Poor alignment may cause failure of the coupling, pump, or motor bearings, or of either shaft.

EG-250 pump can supply pump skid with electric motors. We supply can do normal eletric motors, and motors with IECEX certificate.

You are welcome to email our sales team for more details.
