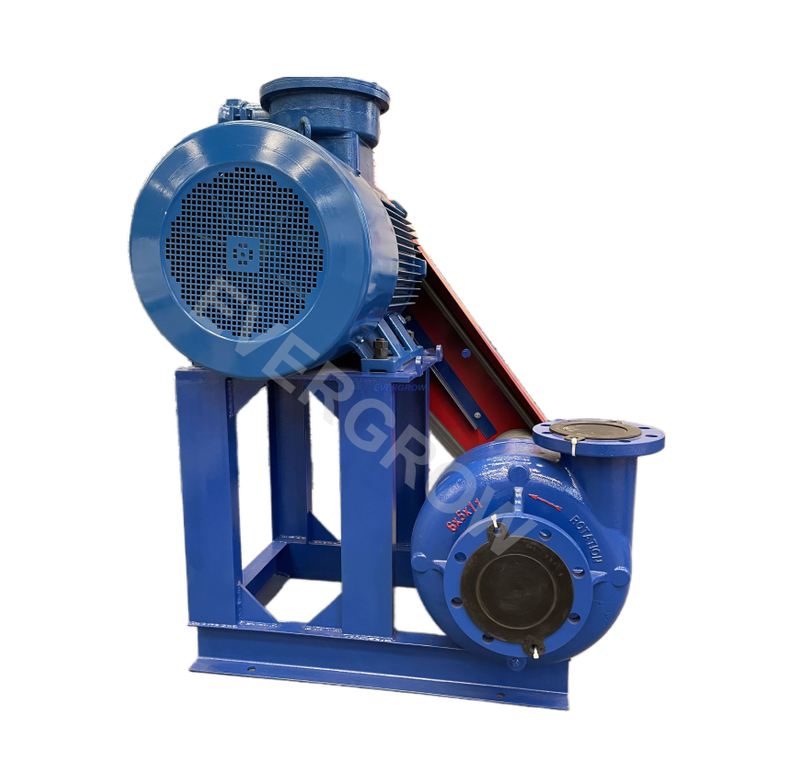

EG-JQB Series Shearing Pump
EG-JQB Series Shearing Pump is mainly used in preparations of chemical medicine of oilfield. It is a solid control device that can quickly configure and process mud and can meet the requirements of configuring high-performance mud.
The Shear Pump Package includes the shear impeller, casing, frame, stuffing box, shaft, V-belt, electric motor, and motor base.
Shear Pump Working Principle
The petroleum drilling fluid shear pump mainly uses centrifugal force to suck the drilling fluid from the pump inlet, and through the rotation of the impeller, generates centrifugal force to push the drilling fluid to the outlet. In this process, the impeller of the shear pump shears and stirs the drilling fluid to make it evenly mixed to achieve better drilling results.
The shearing impeller has a special design, it utilizes the following methods of shearing:
--Fluid enters the pump through the inlet ports and impacts the shear plate.
--Fluid passes through the teeth of the shear plate, which is turning at 2,200 RPM.
--Fifty percent of the fluid is re-circulated through the four nozzle scoops and is jetted through 44 nozzles against the shear plate and incoming fluid.
Available sizes
6x5 and 8x6

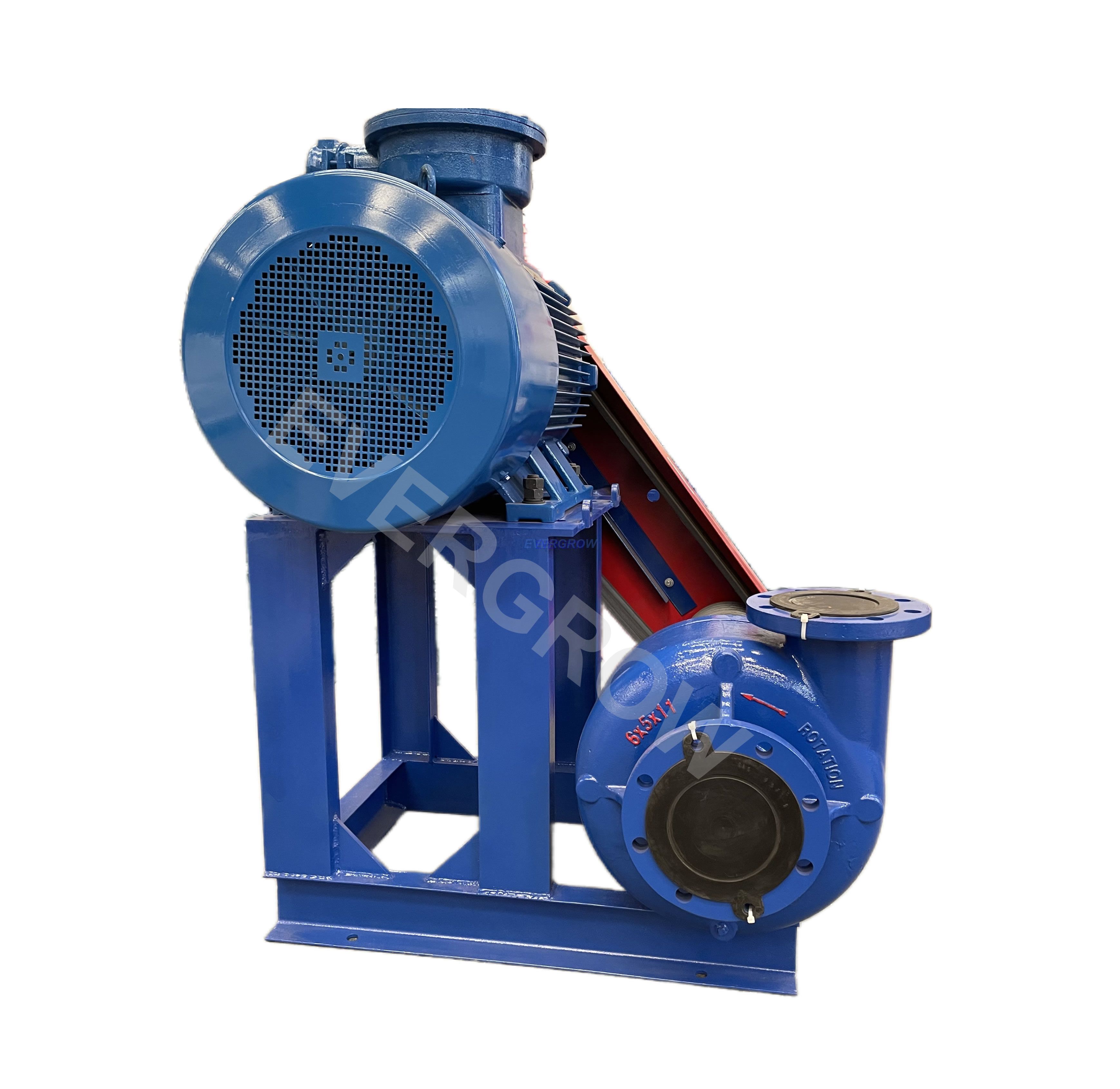

EG-JQB Series Shearing Pump
