EG-XP
EVERGROW
EG 14X12X22-XP Blender Pump is designed to replace Mission Magnum XP Blender Pump and MCM XL Pump.
It is ideally suited for pumping high volumes of heavy slurries that are abrasive, corrosive, and difficult to pump. The compact overall dimensions make it an excellent choice for high-volume mobile and stationary applications where a small footprint is critical. High chrome alloy or hard iron material options for different applications.
EG 14X12X22-XP Blender Pump Design Features:
√ Full-open wide impeller.
√ Long life no adjustment mechanical seal available for near zero leakage.
√ Thick, concentric casing with replaceable casing wear pad.
√ Hard iron and high chrome alloy materials are optional.
√ Large power to ensure large flow rates and head pressure up to 500ft.
√ Small footprint design is versatile for mobile and stationary applications.
√ Working for fracking industrial standard and blending application.
√ Each casing is approved for pressure test prior to delivery.
√ Heat treatment was done to improve the hardness and wear resistance to ensure a longer working life.
√ Shaft sleeves are made with 416SS and ceramic coating to protect the shaft from abrasive fluids for extra life.
√ Mechanical seals can be Tungsten-Tungsten, Tungsten-Silicone, or Silicone-Carbide, all with highly polished sealing face and piton below and stainless steel springs.
√ 100% compatible with NOV™ Mission™ Magnum™ XP, MCM™ XL series and current market offerings.
√ The pumps can be unitized with Ex-proof electric motors, diesel engines in-line, or over-belt driven configuration.
Parts list:
| EG- XP Blender pump Parts List | |||||||||
| Item # | Description | Qty. | Base Part Number | Processing Number | Item # | Description | Qty. | Base Part Number | Processing Number |

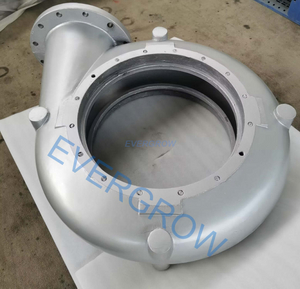

| 1 | Casing, 14X12X22 | 1 | 24022-01-30A | 651120206 | 25 | Bearing, Outboard (14X12 ) | 1 | 20616-2 | 658413307 |
| Casing, 12x10x23 | 25008-01-30A | 662001001 | Bearing, Outboard (12X10 & 8X6) | 2 | 661009001 | ||||
| Casing, 8x6x18 | 25289-02-30A | 662002089 | 26 | Seal, Bearing Cover | 1 | 7496-267 | 658408802 | ||
| 2 | Nut, Casing | 32 | 3932-61 | 648402014 | 27 | Lock Washer | 1 | 24-Jun | 658407002 |
| 3 | Stud, Casing (14X12 & 12X10) | 32 | 3862-86 | 658403308 | 28 | Lock Nut, Bearing | 1 | 23-Jun | 658406509 |
| Stud, Casing (8X6) | 16 | 3862-90 | 601208285 | 29 | Oil Seal, Bearing Cover | 2 | 20619-04 | 658413638 | |
| Stud, Casing (8X6) | 16 | 3862-92 | 648401118 | 30 | Drive Screws | 6 | 12530 | 601482417 | |
| 4 | Gasket, Casing (14x12x22) | 2 | 10399-55-01 | 658410501 | 31 | Nameplate | 1 | 23017 | 601501505 |
| Gasket, Casing (12x10x23) | 25012-01-01 | 661010001 | 32 | Shaft | 1 | 24028-33 | 656420007 | ||
| Gasket, Casing (8x6x18) | 25012-02-05 | 662010032 | 33 | Key, Coupling | 1 | 4372-30-21 | 658405055 | ||
| 5 | Cover, Front (14x12x22) | 1 | 24021-01-30 | 654310309 | 34 | Cover, Bearing O.B. | 1 | 24033-01-01 | 654314004 |
| Cover, Front (12x10x23) | 25009-01-30 | 662014003 | 35 | Bolts, Bearing Cover | 2 | 3861-139 | 648401081 | ||
| Cover, Front (8x6x18) | 25291-02-30 | 662014129 | 36 | Washer, Bearing Cover | 2 | 3936-19-L8 | 648402030 | ||
| 6 | Impeller, 14x12 Clockwise Rot. 22” | 1 | 24024-X0-HS | 662005003 | 37 | Nuts, Bearing Housing | 2 | 3932-62 | 658404702 |
| Impeller, 12x10 Clockwise Rot. 23” | 25010-Y0-30 | 662005002 | 38 | Bolt, Bearing Housing | 4 | 3861-138 | 648401057 | ||
| Impeller, 8x6 Clockwise Rot. 18” | 25292-T0-30 | 662005018 | 39 | Washer, Flat | 2 | 3936-19-L8 | 648402030 | ||
| 7 | Seal, Impeller Nose | 1 | 7496-158 | 658408109 | 40 | Bolt, Packing Gland | 2 | 3861-165 | 601408289 |
| 8 | Key, Impeller | 1 | 4372-29-21 | 658405006 | 41 | Gland, Packing Half | 2 | 24034-01-13 | 654315100 |
| 9 | Nose, Impeller ( Hex Design) | 1 | 24025-04-25L | 652309601 | 42 | Packing Set | 1 | 8264-344-K | 658409503 |
| Nose, Impeller (Two Flat Design) | 24025-01-25L | 652309600 | 43 | Screw, Cap | 2 | 3909-04-87 | 658404207 | ||
| Nose, Impeller (2 Flat Ion Nitride) | 24025-03-25L | 662014054 | 44 | Plug, Grease | 1 | 5-Jan | 601474695 | ||
| 10 | Screw, Set | 1 | 14430-19 | 658411400 | 45 | Breather | 1 | Jan-67 | 601473689 |
| 11 | Jam Nut | 1 | 24026-25L | 658414255 | 46 | Plug, Fitting | 1 | 19368 | 661010020 |
| 12 | Seal, Impeller | 1 | 7496-153 | 658408059 | 58 | Plug, Pipe | 2 | 2002/1/5 | 658409859 |
| 13 | Mechanical Seal (Crane Type) | 1 | 24036 | 658416102 | 59 | Plug, Pipe | 1 | 2006/1/5 | 658410006 |
| 14 | Stuffing Box, Mech. Seal (14X12) | 1 | 24027-01-30 | 653322305 | 60 | Tag, Mechanical Seal | 1 | 22566 | 603445727 |
| Stuffing Box, Mech. Seal (12X10) | 24027-02-30 | 662014002 | Packed Split-Box and Wearplate | ||||||
| Stuffing Box, Mech. Seal (8X6) | 25290-02-30 | 662014128 | 47 | Wearplate, Split Box | 1 | 24023-01-XX | 654310507 | ||
| 15 | Bolt, Stuffing Box | 2 | 3861-117 | 648401016 | 48 | Packing Set | 1 | 8264-345-K | 658409552 |
| 16 | Sleeve, Shaft | 1 | 24029-21BZ | 656422201 | 49 | Nut and Washer Assembly | 2 | 22216-02 | 658413935 |
| 17 | Seal, Sleeve | 1 | 7496-234 | 658408505 | 50 | Bolt, Split-Box | 2 | 3861-168 | 1/2-13x4 lg Gr 5 |
| 18 | Slinger | 1 | 24030-01-13 | 654311604 | 51 | Stuffing Box, Split | 2 | 24037-01-87 | 654317007 |
| 19 | Seal, Slinger | 1 | 7496-238P | 658408554 | 52 | Latern Ring Half | 2 | 24039-13 | 658418207 |
| 21 | Oil Seal, Inboard Bearing | 2 | 20619-03 | 658413604 | 53 | Fitting, Grease | 1 | 19368-01 | 601499403 |
| 21 | Bearing, Inboard | 1 | 20615-2 | 658413000 | 54 | Screw, Cap | 2 | 3909-13-87 | 658404405 |
| 22 | Frame 14X12 | 1 | 24031-01-01 | 654312008 | |||||
| Frame 12X10 | 24031-02-01 | 662014001 | 55 | Tool, Impeller Nose & Nut | 1 | 24040 | 658420203 | ||
| Frame 8X6 | 25293-02-01 | 662014130 | Tool, Impeller Nose (HEX) | Standard Hex Socket | |||||
| 23 | Housing, Bearing | 1 | 24032-01-01 | 654313006 | 56 | Tool, Impeller Removal | 1 | 24041 | 658420252 |
| 24 | Seal, Bearing Housing | 1 | 7496-272 | 658408901 | 57 | Tool, Shaft Holder | 1 | 24042 | 658420302 |
