Views: 1 Author: Site Editor Publish Time: 2022-09-19 Origin: Site
We do replacement spare parts and complete pump for MCM 250 Series and MISSION 2500/Mission Magnum I centrifugal pumps.
We are manufacturer of these parts, and supply these parts to many big pump factories in many countries.
Are you looking for replacement parts for your centrifugal pump repair? Or you want to purchase some spare parts to build a new pump in your fatory? Just contact us for inquiry!

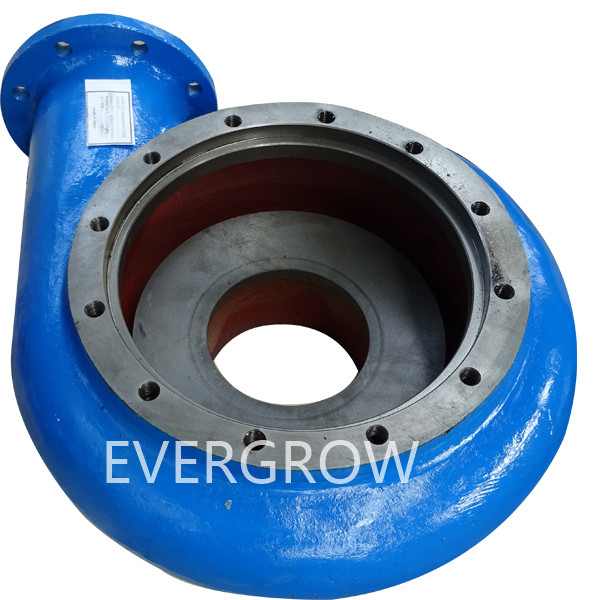

Housing /Casingincludes the below part no.
1* | 1 | See below | Casing | ||
1A | 1 | 10399-46-1 | Gasket,casing | Vellumoid | 0.01 |
1B | 12 | 3932-61 | Nut,casing | Stl | 0.05 |
1C | 12 | 3862-76 | Stud,casing | Stl | 0.16 |
1D | 1 | 8505-04-01 | Plug,Casing Drain | Stl | 0.03 |
1E | 1 | 8505-04-01 | Plug,flush line | Stl | 0.03 |

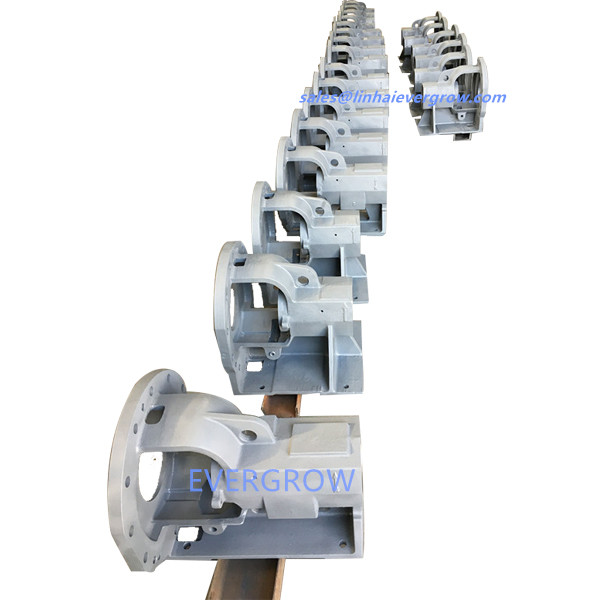

Frame, grease lubricated
9 | 1 | 20618-12-1 | Frame,grease lubricated | Cast iron | 80 |
9C | 1 | 8505-04-01 | Plug, Frame Drain | Stl | 0.033 |
9D | 1 | 8267-01 | Breather | Stl | 0.1 |
9G | 3 | 2538-1H | Bolt,casing jack | Stl | 0.16 |

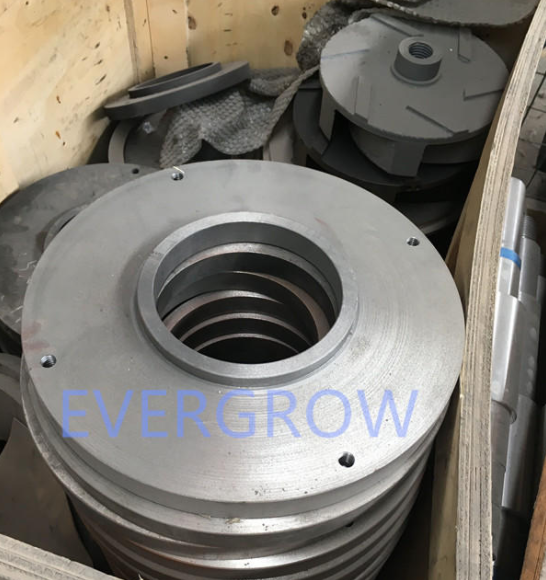

(WEAR PAD)
3*# | 1 | H22223-01-30 | Stuffing box,mech.seal | Hard Iron | 20 |
3*& | 1 | H20614-01-30 | Stuffing box,packed | Hard Iron | 20 |
Welcome to contact for any inquiry for spare parts. amber@linhaievergrow.com
