Views: 31 Author: Linhai Evergrow Petro equip Co.,ltd Publish Time: 2023-02-14 Origin: Linhai Evergrow Petro equip Co.,ltd
For MISSION Centrifugal Pumps, there are two kinds of regular impellers, one is open impeller, the other one is semi opem impeller.
In MISSION Catalog, open impellers are usually for MISSION Magnum series pumps, Semi open impellers are for MISSION 2500 SUPREME series pumps.
They have different P/Ns, listed as below:

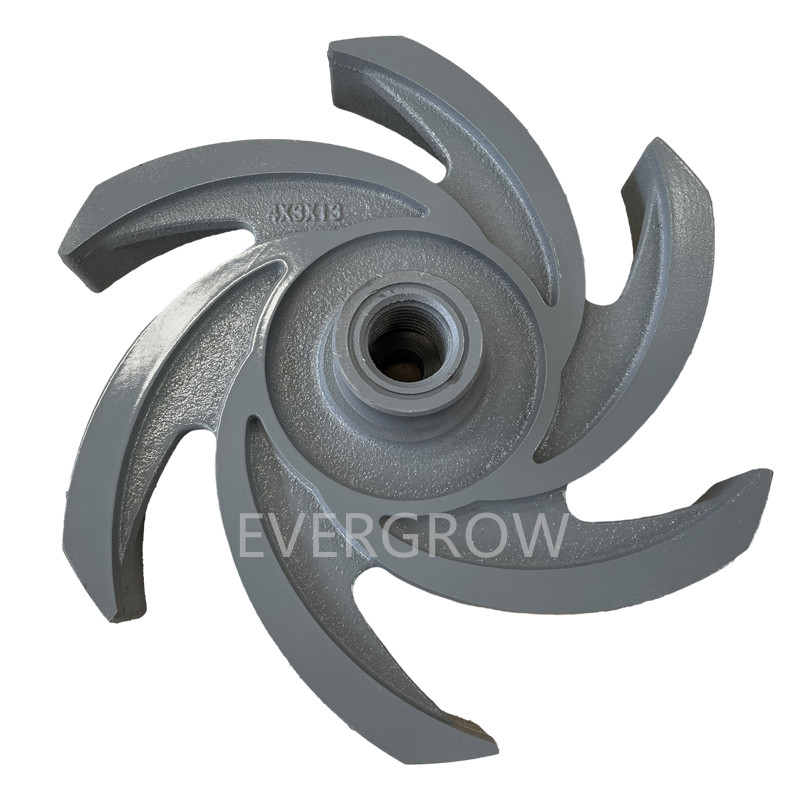

Open impeller
Impellers | ||||||
2* | 1 | 19204-XX-30 | Impeller,3×2×13 | Hard Iron | 9 | |
2* | 1 | 19206-XX-30 | Impeller,4×3×13 | Hard Iron | 12.5 | |
2* | 1 | 19224-XX-30 | Impeller,5×4×14 | Hard Iron | 16 | |
2* | 1 | 19121-XX-30 | Impeller,6×5×11 | Hard Iron | 14 | |
2* | 1 | 19121-XX-30 | Impeller, 6×5×14 | Hard Iron | 18 | |
2* | 1 | 19116-XX-30 | Impeller, 8×6×11 | Hard Iron | 18 | |
2* | 1 | 19116-A0-30 | Impeller,8×6×14 | Hard Iron | 20 | |
2* | 1 | 21867-XX-30 | Impeller,10×8×14 | Hard Iron | 20 | |
Semi open impeller.
Impellers and Casing Wear Pads | |||||
2* | 1 | H19204-XX-30 | Impeller,3×2×13 Open | Hard Iron | 9 |
2* | 1 | H19206-XX-30 | Impeller,4×3×13 Open | Hard Iron | 12.5 |
2* | 1 | H2523-XX-30 | Impeller,5×4×14 Semi Open | Hard Iron | 18 |
2* | 1 | H2524-XX-30 | Impeller,6×5×11 Semi Open | Hard Iron | 17 |
2* | 1 | H2524-XX-30 | Impeller, 6×5×14 Semi Open | Hard Iron | 22 |
2* | 1 | H2524-XX-30 | Impeller, 8×6×11 Semi Open | Hard Iron | 23 |
2* | 1 | H2525-A0-30 | Impeller,8×6×14 Semi Open | Hard Iron | 25 |
2* | 1 | H2526-XX-30 | Impeller,10×8×14 Semi Open | Hard Iron | 26 |
The impeller is the rotating component within the centrifugal pump design, which transfers the energy from the pump’s motor to the fluid.
Fully open impeller, ideally suited for corrosives and abrasives, handles solids and stringy fibers with ease. Allows for simple restoration of clearances when wear takes place. Back pump-out vanes reduce pressure on the shaft seal, reduce axial thrust on the bearings.
Evergrow supplies all sizes of impellers for 250 Series centrifugal Pumps. These pumps 100% interchangeable with standards pumps from brands Halco, MISSION, MCM , Harrisburg.
Below is a chart for P/Ns from different standard centrifugal pumps brands, EVERGROW could do all of these impellers, and we could also do OEM manufacture for your own brands centrifugal Pumps, you are welcome to contact us for inquiries.
| Item No. | Description | Qty Req | MCM | Mission | Halco | Harrisburg | |
| 14 | 250-2x3x13 Impeller | 1 | P25D233MRXXX | 19204-XX-30 | H19204-XX-30 | 1225231XXX | |
| 250-3x4x13 Impeller | 1 | P25D343MRXXX | 19206-XX-30 | H19206-XX-30 | 1225341XXX | G0006026 | |
| 250-4x5x14 Impeller | 1 | P25D454MRXXX | 19224-XX-30 | H19224-XX-30 | 1225451XXX | ||
| 250-5x6x11 Impeller | 1 | P25D561MRXXX | 19121-XX-30 | H19121-XX-30 | 1225561XXX | G0006168 | |
| 250-5x6x14 Impeller | 1 | P25D564MRXXX | 19121-XX-30 | H19121-XX-30 | 1225564XXX | G0006022 | |
| 250-6x8x11 Impeller | 1 | P25D681MRXXX | 19116-XX-30 | H19116-XX-30 | 1225681XXX | ||
| 250-6x8x14 Impeller | 1 | P25D684MRXXX | 19116-XX-30 | H19121-XX-30 | 1225681XXX | G0006023 |
