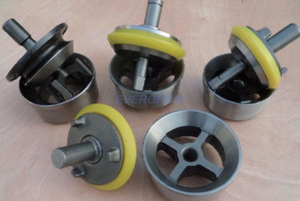

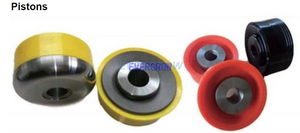

Mud Pump Parts-Bimetal cylinder liner/Ceramic cylinder liner/Valve assembly/Pistons

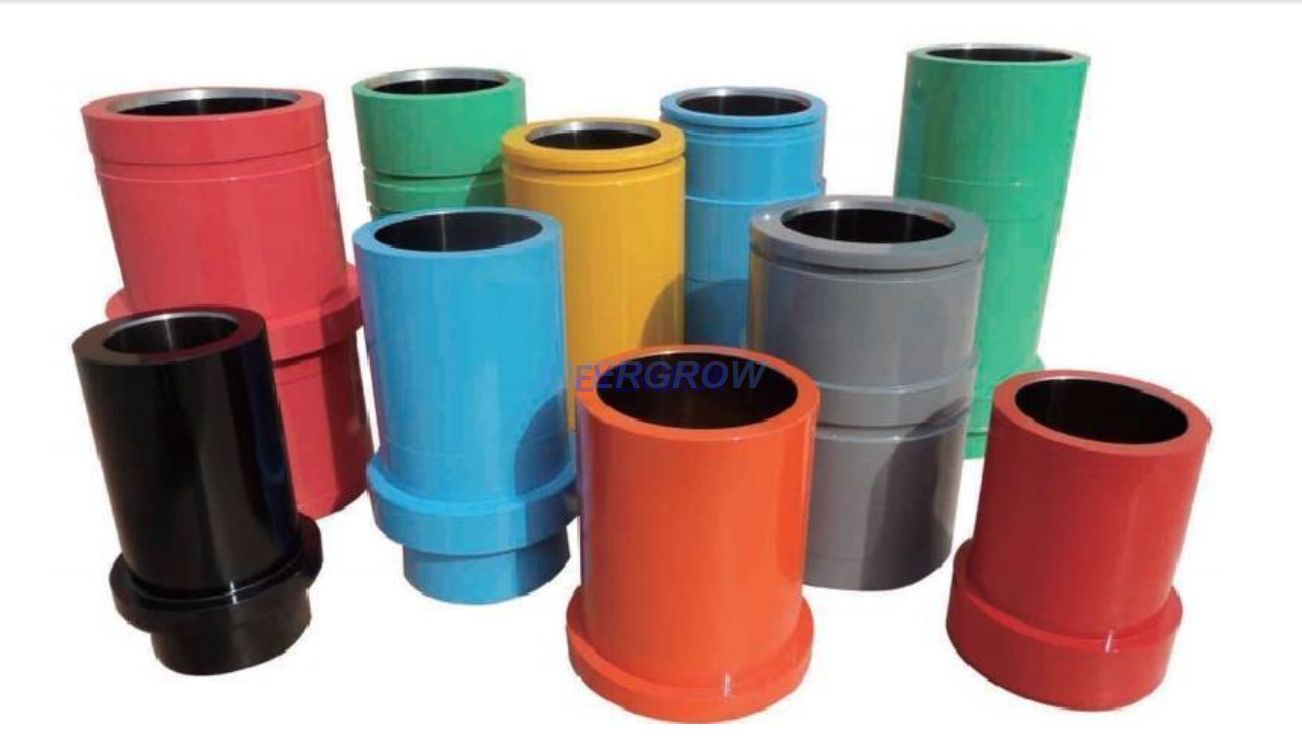

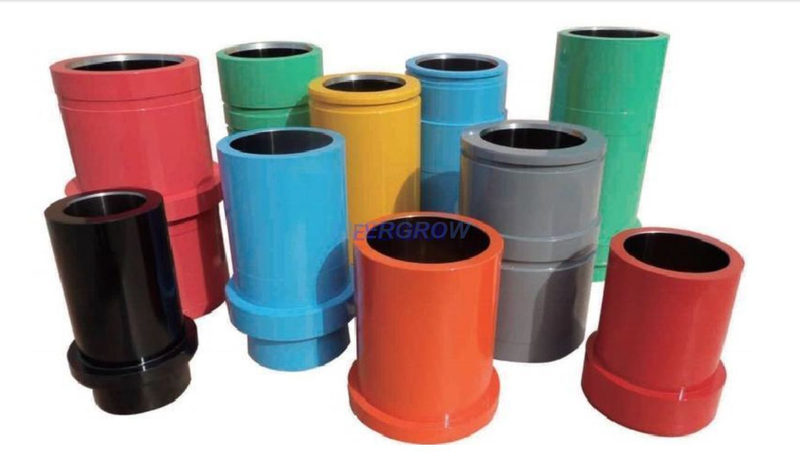

The bimetallic cylinder liner is assembled with an inner and outer sleeve, and is one of the main vulnerable parts of the mud pump. The coat is made of high-quality 45#carbon structural steel. The inner sleeve is made of high chromium cast iron, with a chromium content of 25%-28%.After heat treatment, the hardness of the inner hole reaches HRC60 or above, and it has high corrosion resistance and wear resistance in harsh working environments. The normal service life is over 800 hours.

Ceramic cylinder liner

Based on phase transformation toughening technology and featured by good resistance to corrosion, high pressure and high temperature, high strength and rigidity, good performance

and longer service life above 4,000 hours, the zirconia ceramic linear is applicable to the well drilling, offshore oil and natural gas development

Available Cylinder liner types

American Block

K-800、K1000、K1300、K1600、K2200 Etc.

Aplex(Myers)

SC-170、SC-230、SC-300LEtc.

Bomco

F-500、F-800、F-1000、F-1300、F-1600 Etc.

Brewster

B-1000-T、B-1100-T、B-1300-T、B-1600-T Etc.

Continental Emsco

7TS600、8T750、8T800、9T800、9T1000、10T1300、12T1600 Etc.

Drillmec

7TS600、8T750、8T800、9T800、9T1000、10T1300;

Ellis Williams(Lewco)

W-250-C、W-440-LP、W-600、W-850、W-1000 Etc.

Eweco (EIis Wiliams Engineering Co)

E-447、E-600、E-800、E-1100、E-1600、Etc.

Gardner Denvei

PZ-7、PZ-8、PZ-9、PZ-10、PZ-11 Etc.

Hong Hua

HHF-500、HHF-800、HHF-1000、HHF-1300,HHF-1600、3NB1300F Etc.

IDECO

T-500、T-800、T-1000、T-1300、T-1600;Etc

LS-NOw

3NB-1000C、3NB-1300C、3NB-1600

National

7-P-50、8-P-80、9-P-100、10-P-130、12-P-160、14-P-200;Etc.

Oilwell

350-PT、A-600-PT、A-1100-PT、A-1400-PT、A-1700-PT;Etc.

Soilmec

7T500、7T508、8T650;

TFI (Texas First Industrial))

F-500、F-800、F-1000、F-1300、F-1600;Etc.

TSC

WF-400、WF-450、WF-700、WF-1000、WF-1300、WF-1600、WF-2000;

Weatherford

MP-5、MP-8、MP-10、MP-13、MP-16;

Wirth

TPK-1000、TPK-1300、TPK-1600、TPK-2000、TPK-2200;
