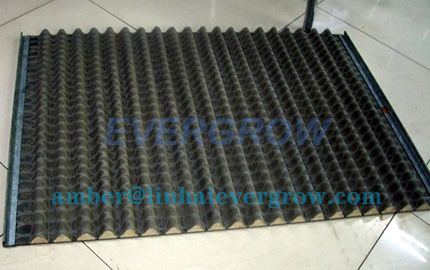

Pyramid screen is named by his special pyramid form. Main feature as follows:
These products screen panels are constructed with two or three 304 or 316 stainless steel wire cloth layers,after compounded and bended,with a steel backing plate combined together.The wire cloth and bottom steel backing plate combined tightly,increase the filtering area 120% to 150% more than hookstrip flat screen,get an better effective.
Modle | Brand&Model for shaker | Mesh Range | Dimension | Weight （KGS） |
SJZ-5 | FLC2000 PMD | 20—325 | 1053×697mm | 6.0KGS |
SJZ-6 | FLC500 Series PMD | 20—325 | 1050×697mm | 7.8KGS |
SJZ-7 | FLC313M PMD | 20—325 | 1165×700mm | 6.5KGS |
Pyramid screen is named by his special pyramid form. Main feature as follows:
These products screen panels are constructed with two or three 304 or 316 stainless steel wire cloth layers,after compounded and bended,with a steel backing plate combined together.The wire cloth and bottom steel backing plate combined tightly,increase the filtering area 120% to 150% more than hookstrip flat screen,get an better effective.
Modle | Brand&Model for shaker | Mesh Range | Dimension | Weight （KGS） |
SJZ-5 | FLC2000 PMD | 20—325 | 1053×697mm | 6.0KGS |
SJZ-6 | FLC500 Series PMD | 20—325 | 1050×697mm | 7.8KGS |
SJZ-7 | FLC313M PMD | 20—325 | 1165×700mm | 6.5KGS |
