EG SANDMASTER
EVERGROW
ITEM | QTY | MISSION PART No. | DESCRIPTION | MATERAIL | WEIGHT kg | |||||||||
1* | 1 | See below | Casing | |||||||||||
1A | 1 | 10399-46-1 | Gasket,casing | Vellumoid | 0.01 | |||||||||
1B | 12 | 3932-61 | Nut,casing | Stl | 0.05 | |||||||||
1C | 12 | 3862-76 | Stud,casing | Stl | 0.16 | |||||||||
1D | 1 | 8505-04-01 | Plug,Casing Drain | Stl | 0.03 | |||||||||
1E | 1 | 8505-04-01 | Plug,flush line | Stl | 0.03 | |||||||||
2* | 1 | See below | Impeller | |||||||||||
2A | 1 | 19110-72 | Seal,impeller | Viton | 0.002 | |||||||||
2B | 1 | 7300239 | Washer,impeller | Stl | 0.02 | |||||||||
2C | 1 | 7415648 | Bolt,impeler lock | Stl | 0.15 | |||||||||
3*# | 1 | 22223-01-30 | Stuffing box,mech.seal | Hard Iron | 20 | |||||||||
3*& | 1 | 20614-01-30 | Stuffing box,packed | Hard Iron | 20 | |||||||||
3A | 2 | 3861-117 | Bolt,stuffing box | Stl | 0.05 | |||||||||
4 | 1 | 20622A | Gland assy,packing | Stl 304 | 1 | |||||||||
5A# | 1 | 22451-1 | Seal,mechanical | Tung/Tung | 1 | |||||||||
5A# | 1 | 648402600 | Packing, Shaft - M.S. Backup | Graphite Acrylic | 0.3 | |||||||||
5A# | Option | 648402600 | Packing, Shaft - M.S. Backup | Kevlar | 0.3 | |||||||||
5A | 1 | 25014-04M-B | Packing, Shaft - w/latern ring | Graphite/Acrylic | 0.5 | |||||||||
5A | Option | 250147-04M-D | Packing, Shaft - w/latern ring | Teflon, White | 0.5 | |||||||||
5A# | Option | 25014-04M-C | Packing, Shaft - w/latern ring | Kevlar | 0.5 | |||||||||
6 | 2 | B3701A | Bolt assy,gland | Stl 304 | 0.15 | |||||||||

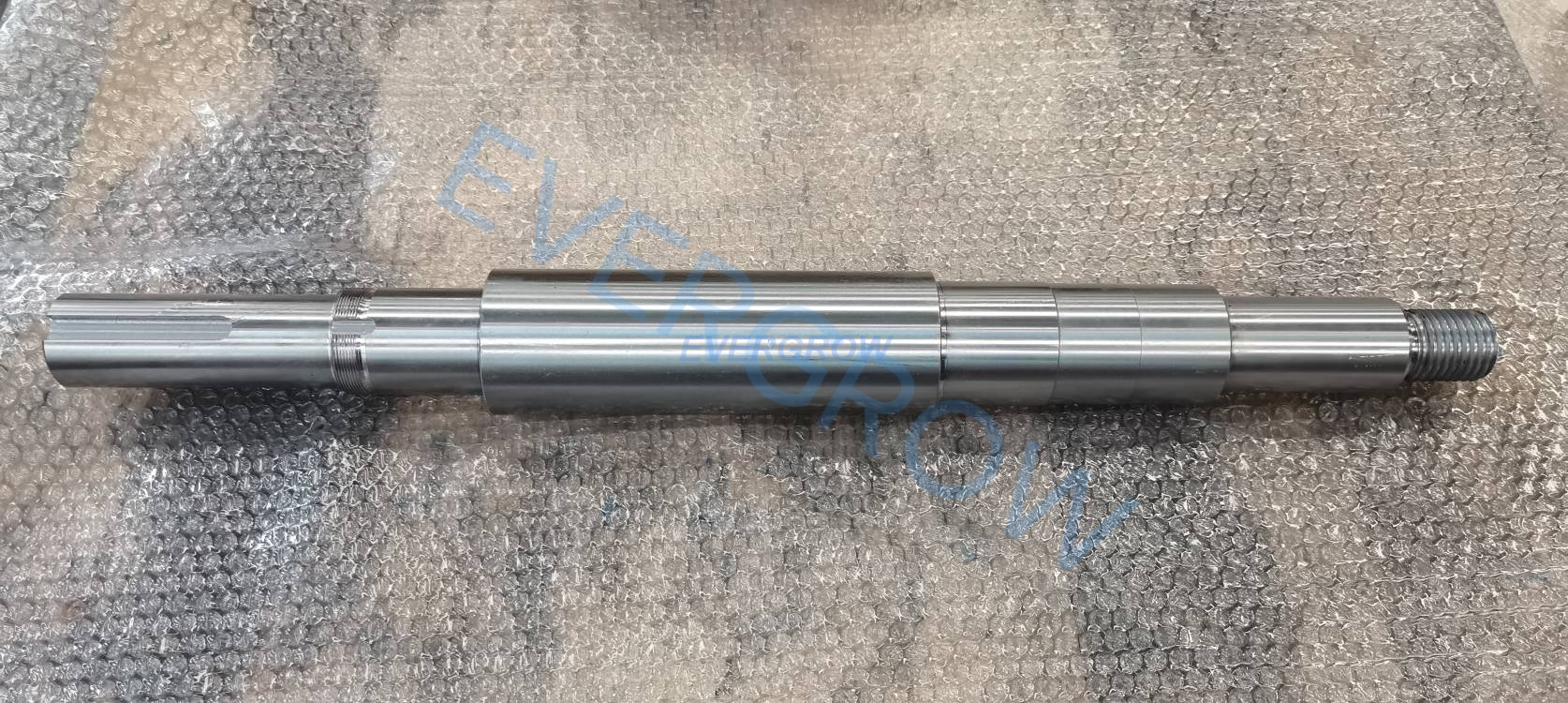

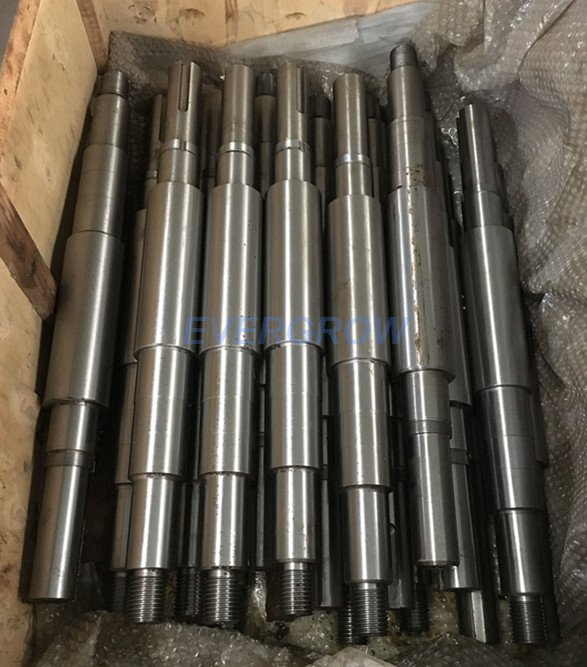

7 | 1 | 20939-02-33 | Shaft | 42CrMo | 15 | |||||||||
7A | 1 | 20943-04A | Sleeve,shaft | 38CrMoAl | 1 | |||||||||
7B | 1 | 4371-5-21 | Key,shaft | Stl | 0.11 | |||||||||
7C | 1 | 23444-01-72 | Seal,shaft sleeve | Viton | 0.005 | |||||||||
8 | 1 | 22210-1A | Deflector assembly | Composite | 0.4 | |||||||||
9 | 1 | 20938-02-1 | Frame,grease lubricated | Cast iron | 75 | |||||||||
9C | 1 | 8505-04-01 | Plug, Frame Drain | Stl | 0.033 | |||||||||
9D | 1 | 8267-01 | Breather | Stl | 0.1 | |||||||||
9G | 3 | 2538-1H | Bolt,casing jack | Stl | 0.16 | |||||||||
10A | 1 | 20626 | Cover,inboard bearing | Iron | 2.6 | |||||||||
10B | 1 | 20625 | Gasket,I.B.Brg.Cover | Vegetable fiber | 0.01 | |||||||||

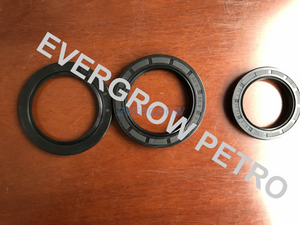

10C | 1 | 20619-01 | Oil seal, I.B.Brg.Cover | Buna-n | 0.06 | |||||||||
10D | 2 | 3861-1 | Bolt, I.B.Brg.Cover | Stl | 0.03 | |||||||||
10E | 2 | 3932-2 | Nut, I.B.Brg.Cover | Stl | 0.07 | |||||||||
10F | 1 | 20620-01 | Exclusion Seal, I.B. Brg. Cvr. | Buna-n | 0.01 | |||||||||
10G | 1 | 21641-01 | Grease fitting | Stl | 0.07 | |||||||||
10H | 1 | 648411908 | Grease fitting | Stl | 0.07 | |||||||||
11 | 1 | 661 00901 OA | Bearing, Inboard & Spacer | Roller | 2.1 | |||||||||
11 | 1 | 20615-1 | Bearing,inboard | Vendor | 2.1 | |||||||||
12 | 1 | 20624-01-01 | Housing,O.B.bearing | Iron | 6 | |||||||||
12A | 1 | 7496-253 | Seal, O.B.Brg.housing | Buna-n | 0.01 | |||||||||
12B | 4 | 3861-138 | Bolts, O.B.Brg.housing | Stl | 0.05 | |||||||||
12C | 2 | 3932-62 | Nut, O.B.Brg.housing jam | Stl | 0.016 | |||||||||
13 | 1 | 20617A | Cover,O.B.Bearing | Iron | 1.8 | |||||||||
13A | 1 | 19368-01 | Grease zerk, O.B.Brg.Cover | Brass | 0.01 | |||||||||
13B | 1 | 7496-26 | O-ring, O.B.Brg.Cover | Buna-n | 0.001 | |||||||||
13C | 1 | 20619-02 | Oil seal, O.B.Brg.Cover | Buna-n | 0.04 | |||||||||
13D | 2 | 3861-139 | Bolt, O.B.Brg.Cover | Stl | 0.025 | |||||||||
14 | 2 | 20616-1 | Bearing, O.B. | Vendor | 1.5 | |||||||||
14A | 1 | 6124-4 | Lockwasher,O.B.Bearing | Stl | 0.01 | |||||||||
14B | 1 | 6123-4 | Locknut, O.B.Bearing | Stl | 0.22 | |||||||||
Casings-includes studs,nuts & gasket | ||||||||||||||
1* | 1 | 19203-01-30A | Casing,3×2×13 | Hard Iron | 55 | |||||||||
1* | 1 | 19205-01-30A | Casing,4×3×13 | Hard Iron | 57 | |||||||||
1* | 1 | 19222-01-30A | Casing, 5×4×14 | Hard Iron | 88 | |||||||||
1* | 1 | 19122-01-30A | Casing,6×5×11 | Hard Iron | 90 | |||||||||
1* | 1 | 19123-01-30A | Casing, 6×5×14 | Hard Iron | 95 | |||||||||
1* | 1 | 19763-01-30A | Casing, 8×6×11 | Hard Iron | 97 | |||||||||
1* | 1 | 19117-01-30A | Casing,8×6×14 | Hard Iron | 125 | |||||||||
1* | 1 | 20937-01-30A | Casing,10×8×14 | Hard Iron | 155 | |||||||||
Impellers | ||||||||||||||
2* | 1 | 19204-XX-30 | Impeller,3×2×13 | Hard Iron | 9 | |||||||||
2* | 1 | 19206-XX-30 | Impeller,4×3×13 | Hard Iron | 12.5 | |||||||||
2* | 1 | 19224-XX-30 | Impeller,5×4×14 | Hard Iron | 16 | |||||||||
2* | 1 | 19121-XX-30 | Impeller,6×5×11 | Hard Iron | 14 | |||||||||
2* | 1 | 19121-XX-30 | Impeller, 6×5×14 | Hard Iron | 18 | |||||||||
2* | 1 | 19116-XX-30 | Impeller, 8×6×11 | Hard Iron | 18 | |||||||||
2* | 1 | 19116-A0-30 | Impeller,8×6×14 | Hard Iron | 20 | |||||||||
2* | 1 | 21867-XX-30 | Impeller,10×8×14 | Hard Iron | 20 | |||||||||
Note：1. XX－Impeller code－Firsr X equals diameter of impeller in inches minus 4.Therefore 10″=6,9″=5 etc…14″ use lettet A;
2. Second X equals frational data in1/8′s.Therefore 1/8″=1, 1/4″=2 ,etc…Thus a 10.5″impeller is coded as 64, 12″impeller is coded as 80, 13.25″impeller is coded as 92 etc…
3. YYY－the metric diameter of impeller，therefore 12″ is coede as 305mm，11″ is coded as 280mm
