EG-XP Stuffing box
EVERGROW

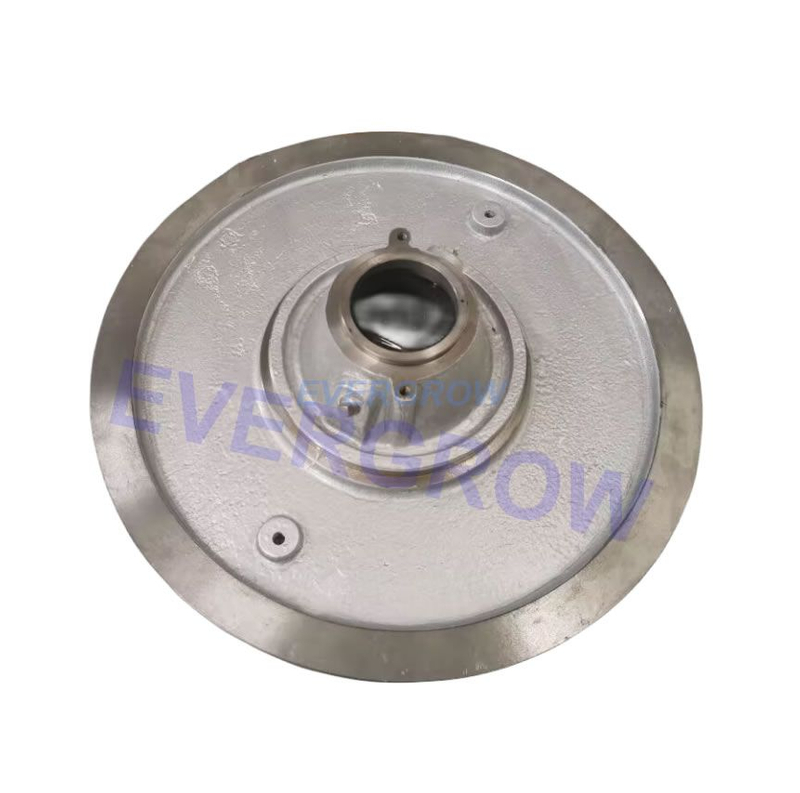

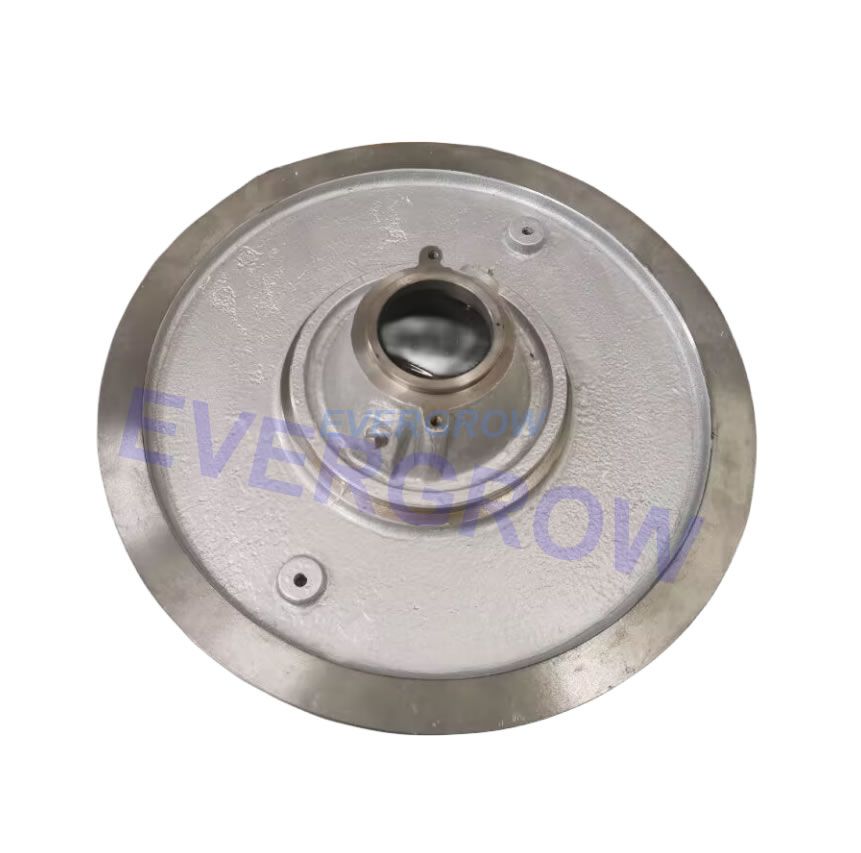

Stuffing Box for EG-XP C Pump 12x10x23-XP Centrifugal Pump/Blender Pump 24027-02-30 662014002

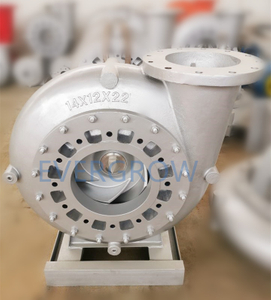

EG-XP C Pump is big Centrifugal pumps, our pump is 100% interchangeable with many big C pumps in the industry.
We could do all the spare parts for XP C pumps of the below list:
| EG- XP Blender pump Parts List | |||||||||
| Item # | Description | Qty. | Base Part Number | Processing Number | Item # | Description | Qty. | Base Part Number | Processing Number |
| 1 | Casing, 14X12X22 | 1 | 24022-01-30A | 651120206 | 25 | Bearing, Outboard (14X12 ) | 1 | 20616-2 | 658413307 |
| Casing, 12x10x23 | 25008-01-30A | 662001001 | Bearing, Outboard (12X10 & 8X6) | 2 | 661009001 | ||||
| Casing, 8x6x18 | 25289-02-30A | 662002089 | 26 | Seal, Bearing Cover | 1 | 7496-267 | 658408802 | ||
| 2 | Nut, Casing | 32 | 3932-61 | 648402014 | 27 | Lock Washer | 1 | 24-Jun | 658407002 |
| 3 | Stud, Casing (14X12 & 12X10) | 32 | 3862-86 | 658403308 | 28 | Lock Nut, Bearing | 1 | 23-Jun | 658406509 |
| Stud, Casing (8X6) | 16 | 3862-90 | 601208285 | 29 | Oil Seal, Bearing Cover | 2 | 20619-04 | 658413638 | |
| Stud, Casing (8X6) | 16 | 3862-92 | 648401118 | 30 | Drive Screws | 6 | 12530 | 601482417 | |
| 4 | Gasket, Casing (14x12x22) | 2 | 10399-55-01 | 658410501 | 31 | Nameplate | 1 | 23017 | 601501505 |
| Gasket, Casing (12x10x23) | 25012-01-01 | 661010001 | 32 | Shaft | 1 | 24028-33 | 656420007 | ||
| Gasket, Casing (8x6x18) | 25012-02-05 | 662010032 | 33 | Key, Coupling | 1 | 4372-30-21 | 658405055 | ||
| 5 | Cover, Front (14x12x22) | 1 | 24021-01-30 | 654310309 | 34 | Cover, Bearing O.B. | 1 | 24033-01-01 | 654314004 |
| Cover, Front (12x10x23) | 25009-01-30 | 662014003 | 35 | Bolts, Bearing Cover | 2 | 3861-139 | 648401081 | ||
| Cover, Front (8x6x18) | 25291-02-30 | 662014129 | 36 | Washer, Bearing Cover | 2 | 3936-19-L8 | 648402030 | ||
| 6 | Impeller, 14x12 Clockwise Rot. 22” | 1 | 24024-X0-HS | 662005003 | 37 | Nuts, Bearing Housing | 2 | 3932-62 | 658404702 |
| Impeller, 12x10 Clockwise Rot. 23” | 25010-Y0-30 | 662005002 | 38 | Bolt, Bearing Housing | 4 | 3861-138 | 648401057 | ||
| Impeller, 8x6 Clockwise Rot. 18” | 25292-T0-30 | 662005018 | 39 | Washer, Flat | 2 | 3936-19-L8 | 648402030 | ||
| 7 | Seal, Impeller Nose | 1 | 7496-158 | 658408109 | 40 | Bolt, Packing Gland | 2 | 3861-165 | 601408289 |
| 8 | Key, Impeller | 1 | 4372-29-21 | 658405006 | 41 | Gland, Packing Half | 2 | 24034-01-13 | 654315100 |
| 9 | Nose, Impeller ( Hex Design) | 1 | 24025-04-25L | 652309601 | 42 | Packing Set | 1 | 8264-344-K | 658409503 |
| Nose, Impeller (Two Flat Design) | 24025-01-25L | 652309600 | 43 | Screw, Cap | 2 | 3909-04-87 | 658404207 | ||
| Nose, Impeller (2 Flat Ion Nitride) | 24025-03-25L | 662014054 | 44 | Plug, Grease | 1 | 5-Jan | 601474695 | ||
| 10 | Screw, Set | 1 | 14430-19 | 658411400 | 45 | Breather | 1 | Jan-67 | 601473689 |
| 11 | Jam Nut | 1 | 24026-25L | 658414255 | 46 | Plug, Fitting | 1 | 19368 | 661010020 |
| 12 | Seal, Impeller | 1 | 7496-153 | 658408059 | 58 | Plug, Pipe | 2 | 2002/1/5 | 658409859 |
| 13 | Mechanical Seal (Crane Type) | 1 | 24036 | 658416102 | 59 | Plug, Pipe | 1 | 2006/1/5 | 658410006 |
| 14 | Stuffing Box, Mech. Seal (14X12) | 1 | 24027-01-30 | 653322305 | 60 | Tag, Mechanical Seal | 1 | 22566 | 603445727 |
| Stuffing Box, Mech. Seal (12X10) | 24027-02-30 | 662014002 | Packed Split-Box and Wearplate | ||||||
| Stuffing Box, Mech. Seal (8X6) | 25290-02-30 | 662014128 | 47 | Wearplate, Split Box | 1 | 24023-01-XX | 654310507 | ||
| 15 | Bolt, Stuffing Box | 2 | 3861-117 | 648401016 | 48 | Packing Set | 1 | 8264-345-K | 658409552 |
| 16 | Sleeve, Shaft | 1 | 24029-21BZ | 656422201 | 49 | Nut and Washer Assembly | 2 | 22216-02 | 658413935 |
| 17 | Seal, Sleeve | 1 | 7496-234 | 658408505 | 50 | Bolt, Split-Box | 2 | 3861-168 | 1/2-13x4 lg Gr 5 |
| 18 | Slinger | 1 | 24030-01-13 | 654311604 | 51 | Stuffing Box, Split | 2 | 24037-01-87 | 654317007 |
| 19 | Seal, Slinger | 1 | 7496-238P | 658408554 | 52 | Latern Ring Half | 2 | 24039-13 | 658418207 |
| 21 | Oil Seal, Inboard Bearing | 2 | 20619-03 | 658413604 | 53 | Fitting, Grease | 1 | 19368-01 | 601499403 |
| 21 | Bearing, Inboard | 1 | 20615-2 | 658413000 | 54 | Screw, Cap | 2 | 3909-13-87 | 658404405 |
| 22 | Frame 14X12 | 1 | 24031-01-01 | 654312008 | |||||
| Frame 12X10 | 24031-02-01 | 662014001 | 55 | Tool, Impeller Nose & Nut | 1 | 24040 | 658420203 | ||
| Frame 8X6 | 25293-02-01 | 662014130 | Tool, Impeller Nose (HEX) | Standard Hex Socket | |||||
| 23 | Housing, Bearing | 1 | 24032-01-01 | 654313006 | 56 | Tool, Impeller Removal | 1 | 24041 | 658420252 |
| 24 | Seal, Bearing Housing | 1 | 7496-272 | 658408901 | 57 | Tool, Shaft Holder | 1 | 24042 | 658420302 |
Welcome to contact our sales team for inquiries.
