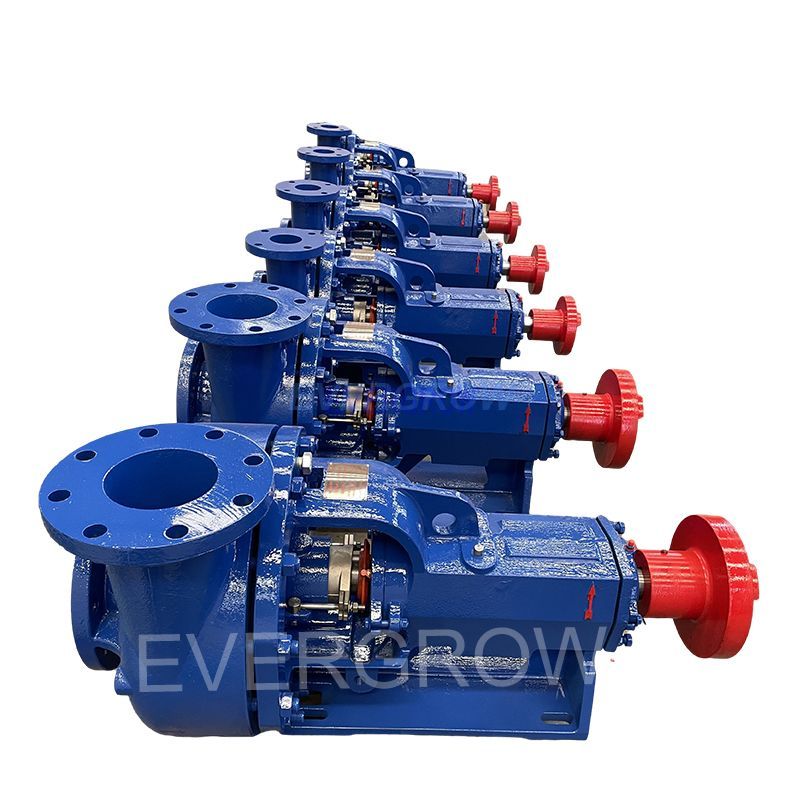

EG-250 Centrifugal Pump With Motor Coupling

1*

1

See below

See below

Casing

1A

1

1A0399

10399-46-1

P25HG

Gasket, Casing

Vellumoid

1B

12

1B3932

3932-61

P25HSN

Nut, Casing

Stl

1C

12

1C3862

3862-76

Stud, Casing

Stl

1D

1

1D2412

8505-4-1

P25ODP

Plug, Casing Drain

Stl

1E

1

1E2412

8505-4-1

P25ODP

Plug, Flush line

Stl

2*

1

See below

Impeller

2A

1

2A1911

19110-72

P25IMS

Seal, Impeller

Viton

2B

1

2B3002

7300239

-

Washer, Impeller

Stl

2C

1

2C4156

7415648

-

Bolt, Impeller lock

Stl

3*#

1

322223

22223-01-30

P25SB/MS

Stuffing box, Mech. Seal

Hard Iron

3*&

1

320614

20614-01-30

P25SB/PK

Stuffing box, Packed

Hard Iron

3A

2

3A8617

3861-117

P25SBB

Bolt, Stuffing box

Stl

4

1

420622

20622A

P25PG

Gland Assy, Packing

Stl 304

5A#

1

5A2451

22451-1

P25MS/TT

Seal, Mechanical

Tung/Tung

5A#

1

5A684G

648402600

P25PMSG

Packing, Shaft - M.S. Backup

Graphite Acrylic

5A#

Option

5A684K

648402600

-

Packing, Shaft - M.S. Backup

Kevlar

5A

1

5A251B

25014-04M-B

P25PMSK

Packing, Shaft - w/latern ring

Graphite/Acrylic

5A

Option

5A251D

250147-04M-D

P25PMST

Packing, Shaft - w/latern ring

Teflon, White

5A#

Option

5A251C

25014-04M-C

-

Packing, Shaft - w/latern ring

Kevlar

6

2

6B3701

B3701A

P25GABA

Bolt assy, Gland

Stl 304

7

1

720612

20612-02-33

P25SHFT

Shaft

42CrMo

7A#

1

7A0943

20943-04A

-

Sleeve, Shaft

38CrMoAl

7A&

1

7A0613

20613-21G-7A

P25SHSLVC

Sleeve, Shaft, ceramic

Ceramic

7B

1

7B9026

4371-5-21

P25CK

Key, Shaft

Stl

7C

1

7C2344

23444-01-72

P25SSS

Seal, Shaft sleeve

Viton

8

1

822210

22210-1A

P25SRW

Deflector assembly

Composite

9

1

920618

20618-12-1

P25PED

Frame, Grease lubricated

Cast iron

9C

1

9C8505

8505-05

-

Plug, Frame Drain

Stl

9D

1

9D1967

1967-1-1

-

Breather

Stl

9G

3

9G2538

2538-1H

-

Bolt, Casing jack

Stl

10A

1

10A0626

20626A

P25IBBC

Cover, Inboard bearing

Iron

10B

1

10B0625

20625

P25IBBCG

Gasket,I.B.Brg.Cover

Vegetable fiber

10C

1

10C0619

20619-01

P25IBBOS

Oil seal, I.B.Brg.Cover

Buna-n

10D

2

10D3861

3861-1-1

P25IBBCB

Bolt, I.B.Brg.Cover

Stl

10E

2

10E1932

1932-2-1

-

Nut, I.B.Brg.Cover

Stl

10F

1

10F2062

20620-01

P251BBES

Exclusion Seal, I.B. Brg. Cvr.

Buna-n

10G

1

10G1641

21641-01

P25ZGF

Grease fitting

Stl

10H

1

10H6841

648411908

P25ZGF

Grease fitting

Stl

11

1

1100901

661 00901 OA

-

Bearing, Inboard & Spacer

Roller

11

1

1120615

20615-1

P25IBBRG

Bearing,inboard

Vendor

12

1

1220624

20624-01-01

P25OBBH

Housing,O.B.bearing

Iron

12A

1

12A7496

7496-253

P25OBBHS

Seal, O.B.Brg.housing

Buna-n

12B

4

12B3861

3861-138

P25BHB

Bolts, O.B.Brg.housing

Stl

12C

2

12C3962

3932-62

P25BCP

Nut, O.B.Brg.housing jam

Stl

13

1

1320617

20617A

P25OBBC

Cover,O.B.Bearing

Iron

13A

1

13A9368

19368-01

P25ZGF

Grease fitting

Brass

13B

1

13B7496

7496-26

P25OBBCS

O-ring, O.B.Brg.Cover

Buna-n

13C

1

13C0619

20619-02

P25OBBOS

Oil seal, O.B.Brg.Cover

Buna-n

13D

2

13D3861

3861-139

P25OBBCB

Bolt, O.B.Brg.Cover

Stl

14

2

1420616

20616-1

P25OBBRG

Bearing, O.B.

Vendor

14A

1

14A6124

6124-4-1

P25BLNK

Lockwasher,O.B.Bearing

Stl

14B

1

14B6123

6123-4-1

Locknut, O.B.Bearing

Stl

Casings-includes studs,nuts & gasket

1*

1

12503213

19203-01-30A

P25D233H

Casing,3×2×13

Hard Iron

1*

1

12504313

19205-01-30A

P25D343H

Casing,4×3×13

Hard Iron

1*

1

12505414

19222-01-30A

P25D454H

Casing, 5×4×14

Hard Iron

1*

1

12506511

19122-01-30A

P25D561H

Casing,6×5×11

Hard Iron

1*

1

12506514

19123-01-30A

P25D564H

Casing, 6×5×14

Hard Iron

1*

1

12508611

19763-01-30A

P25D681H

Casing, 8×6×11

Hard Iron

1*

1

12508614

19117-01-30A

P25D684H

Casing,8×6×14

Hard Iron

1*

1

12510814

20937-01-30A

-

Casing,10×8×14

Hard Iron

Impellers

2*

1

22503213

19204-XX-30

P25D233MRxxx

Impeller,3×2×13

Hard Iron

2*

1

22504313

19206-XX-30

P25D343MRxxx

Impeller,4×3×13

Hard Iron

2*

1

22505414

19224-XX-30

P25D454MRxxx

Impeller,5×4×14

Hard Iron

2*

1

22506511

19121-XX-30

P25D561MRxxx

Impeller,6×5×11

Hard Iron

2*

1

22506514

19121-XX-30

P25D564MRxxx

Impeller, 6×5×14

Hard Iron

2*

1

22508611

19121-XX-30

P25D561MRxxx

Impeller, 8×6×11

Hard Iron

2*

1

22508614

19116-A0-30

P25D684MRxxx

Impeller,8×6×14

Hard Iron

2*

1

22510814

21867-XX-30

-

Impeller,10×8×14

Hard Iron

Casings-includes studs,nuts & gasket   without wear pads

1*

1

2500H3213

H19203-01-30A

Casing,3×2×13

Hard Iron

1*

1

2500H4313

H19205-01-30A

Casing,4×3×13

Hard Iron

1*

1

2500H5414

H19222-01-30A

Casing,5×4×14

Hard Iron

1*

1

2500H6511

H19122-01-30A

Casing,6×5×11

Hard Iron

1*

1

2500H6514

H19123-01-30A

Casing, 6×5×14

Hard Iron

1*

1

2500H8611

H19763-01-30A

Casing,8×6×11

Hard Iron

1*

1

2500H8614

H19117-01-30A

Casing,8×6×14

Hard Iron

1*

1

250H10814

H20937-01-30A

Casing,10×8×14

Hard Iron

Impellers and Casing Wear Pads

2*

1

2500M3213

H19204-XX-30

Impeller,3×2×13    Open

Hard Iron

2*

1

2500M4313

H19206-XX-30

Impeller,4×3×13  Open

Hard Iron

2*

1

2500M5414

H2523-XX-30

Impeller,5×4×14    Semi Open

Hard Iron

2*

1

2500M6511

H2524-XX-30

Impeller,6×5×11  Semi Open

Hard Iron

2*

1

2500M6514

H2524-XX-30

Impeller, 6×5×14 Semi Open

Hard Iron

2*

1

2500M8611

H2524-XX-30

Impeller, 8×6×11 Semi Open

Hard Iron

2*

1

2500M8614

H2525-XX-30

Impeller,8×6×14 Semi Open

Hard Iron

2*

1

250M10814

H2526-XX-30

Impeller,10×8×14 Semi Open

Hard Iron

1E

1

2500W4313

H2501-01-30A

Wear Pad,4×3×13 Casing

Hard Iron

1E

1

2500W5414

H2502-01-30A

Wear Pad,5×4×14 Casing

Hard Iron

1E

1

2500W6511

H2503-01-30A

Wear Pad,6×5×11 Casing

Hard Iron

1E

1

2500W6514

H2504-01-30A

Wear Pad, 6×5×14 Casing

Hard Iron

1E

1

2500W8611

H2505-01-30A

Wear Pad,8×6×11 Casing

Hard Iron

1E

1

2500W8614

H2506-01-30A

Wear Pad,8×6×14 Casing

Hard Iron

1E

1

2500W8614

H2527-01-30A

Wear Pad,10×8×14 Casing

Hard Iron

1

S023939

20939-02-33

Shaft, Short pump

42CrMo

2

S021938

20938-02-1

Frame, Short pump

HT250

3

S014324

22224-01-43

Housing, Hydraulic Outboard Bearing

QT700

4

S011225

22225-01-01

Adapter, Hydraulic Drive

QT500

Parts for Short Pumps (All parts for   short pumps are identical to the EG-250 except the above)
