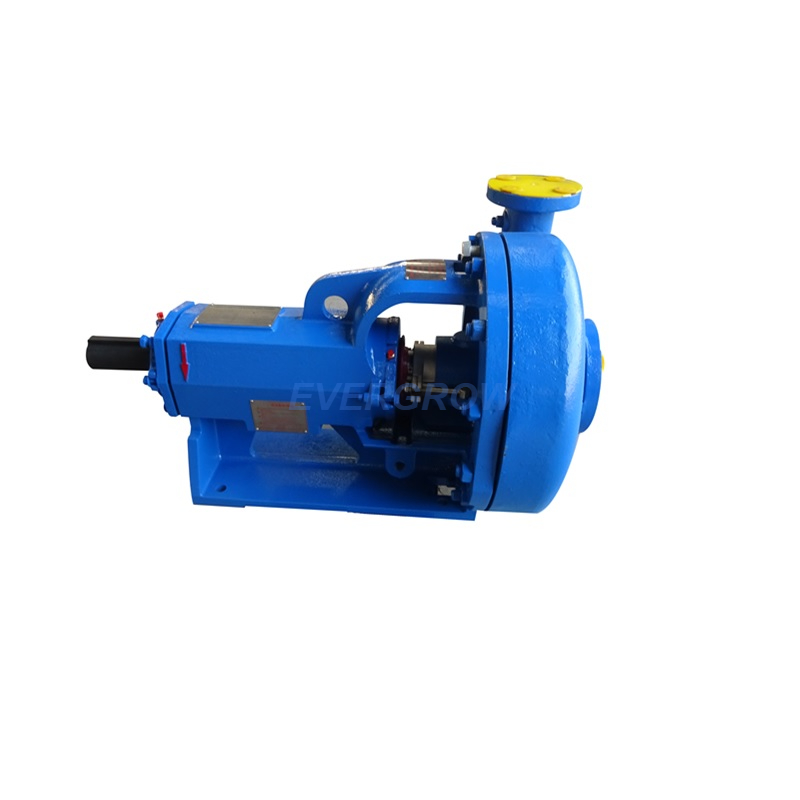

EG250-3X2X13 Centrifugal pump- MISSION Magnum/ MCM Equivalent

EG250-3x2x13 Centrifugal pump Iis 100% percent interchangeable with MISSION Magnum/ MCM centrifugal pumps.

Below models are available:

3x2x13       6x5x14

4x3x13       8x6x11

5x4x14       8x6x14

6x5x11       10x8x14

Design features:

• Optimum pressure at low operating speeds

• Thicker casing to extend life from wear and corrosion

• New impeller design to reduce loads and extend bearing life

• Larger, stronger shaft to reduce deflection

• Replaceable shaft sleeve in packing wear area

• Larger, long-life bearings

• Replaceable stuffing box cover

• Smoother, non-turbulent flow throughout casing

EG-250 Centrifugal pump parts are 100% interchangeable with the below brands:

250 Series Centrifugal Pump Diagram
Item No.	Description	Qty Req	MCM	Mission	Halco	Harrisburg
1	250 Pedestal	1	P25PED	20618-12-1	H20618-12-1	1-250-PED
2	250 Shaft	1	P25SHFT	20612-02-33	H20612-02-33	7-250-416SS
3	250 Outboard Bearing Housing	1	P25OBBH	20624-01-01	H20624-01-01	4C-250-BH
4	250 Packing Gland	1	P25PG	20622A	H20622A	9-250-GPA
5	250 Inboard Bearing	1	P25IBBRG	20615-1	H20615-1	4B-250-BI
6	250 Slinger Ring Water	1	P25SRW	22210-1A	H22210-1A	23-250-SRW-U
7	250 Inboard Bearing Cover	1	P25IBBC	20626A	H20626A	2B-250-BC
8	250 Outboard Bearing	2	P25OBBRG	20616-1	H20616-1	4A-250-BO
9	250 Outboard Bearing Cover	1	P25OBBC	20617A	H20617A	2A-250-BC
10	250 Graphite Packing	1	P25PMSG	8264-24-OBA	H8264-24-OBA	8A-250-PMSG
	250 King Packing	1	P25PMSK	8474-24-1A	H8474-24-1A	8C-250-PMSK
	250 Teflon Packing	1	P25PMST	8264-24-7A	H8264-24-7A	8D-250-PMST
	250 Mechanical Seal	1	P25MS/TT	22451	H22451	34A-250-MSI
11	250 Gland Bolt Assembly	2	P25GABA	3701A	H3701A	10-250-GABA
12	250 Shaft Sleeve, Ceramic	1	P25SHSLVC	20613-21G-7A	H20613-21G-7A	7A-250-SSC
13	250 Stuffing Box F/Packing	1	P25SB/PK	20614-01-30	H20614-01-30	11-250-SBPS
	250 Stuffing Box F/Mech. Seal	1	P25SB/MS	22223-01-30A	H22223-01-30A	11C-250-SBMSS
14	250-2x3x23 Impeller	1	P25D233MRXXX	19204-XX-30	H19204-XX-30	1225231XXX
	250-3x4x13 Impeller	1	P25D343MRXXX	19206-XX-30	H19206-XX-30	1225341XXX
	250-4x5x14 Impeller	1	P25D454MRXXX	19224-XX-30	H19224-XX-30	1225451XXX
	250-5x6x11 Impeller	1	P25D561MRXXX	19121-XX-30	H19121-XX-30	1225561XXX
	250-5x6x14 Impeller	1	P25D564MRXXX	19121-XX-30	H19121-XX-30	1225564XXX
	250-6x8x11 Impeller	1	P25D681MRXXX	19116-XX-30	H19116-XX-30	1225681XXX
	250-6x8x14 Impeller	1	P25D684MRXXX	19116-XX-30	H19121-XX-30	1225681XXX
15	250-2x3x13 Housing Assembly	1	P25D233H	19203-01-30A	H19203-01-30A	142523HAS
	250-3x4x13 Housing Assembly	1	P25D343H	19205-01-30A	H19205-01-30A	142534HAS
	250-4x5x14 Housing Assembly	1	P25D454H	19222-01-30A	H19222-01-30A	N/A
	250-5x6x11 Housing Assembly	1	P25D561H	19122-01-30A	H19122-01-30A	1425561HAS-11
	250-5x6x14 Housing Assembly	1	P25D564H	19123-01-30A	H19123-01-30A	1425561HAS-14
	250-6x8x11 Housing Assembly	1	P25D681H	19763-01-30A	H19763-01-30A	N/A
	250-6x8x14 Housing Assembly	1	P25D684H	19117-01-30A	H19117-01-30A	142568HAS
15b	250 Replaceable Wear Pad	1	P25DCWP
	Casing wear plate 6х5х14	1	P25CWP564	19123-01-30A	H2504-01-30A
	Casing wear plate 8х6х14	1	P25CWP684	19117-01-30A	H2506-01-30A
16	250 Housing Stud W/Nut	12	P25HSN	3862-76/3932-61	H3862-76/3932-61	15-250-HSN
17A	250 Fluid End Gasket Kit		P25FEGK	10399-46-1A	H10399-46-1A	31-250-FEGK
17	250 Housing Gasket	1	P25HG	10399-46-1	H10399-46-1	13C-250-HGA
18	250 Impeller Seal-O ring	1	P25IMS	19110-72	H19110-72	12B250-ISOR
19	250 Shaft Sleeve Seal-Oring	1	P25SSS	7496-236	H7496-236	7B-250-SSOR
20A	250 Oil Seal kit		P250SK	20619A	H20619A	33-250-GSK
20	250 Inboard Bearing Oil Seal	1	P25IBBOS	20619-01	H20619-01	5B-250-OGSI
21	250 Inboard Exclusion Seal	1	P25IBBES	20620-01	H20620-01	5C-250-SEXI
22	250 Outboard Bearing Oil Seal	1	P25OBBOS	20619-02	H20619-02	5A-250-OGSO
23A	250 Power End Gasket Kit		P25PEGK	20625A	H20625A	32-250-PEGK
23	250 Inboard Bearing Cover Gasket	1	P25IBBCG	20625	H20625	3A-250-BCG
24	250 Outbd Bearing Hsg.Seal-Oring	1	P250BBHS	7496-253	H7496-253	4D-250-BHOR
25	250 Outbd Brg. Cover Seal-Oring	1	P250BBCS	7496-26	H7496-26	3B-250-BCOR
26	250 Bearing Lock Nut Kit	1	P25BLNK	6123-4A	H6123-4A	4E-250-BBLNA
Note: XX or XXX indicates Impeller Size

Welcome to contact us for further details.
