EVERGROW

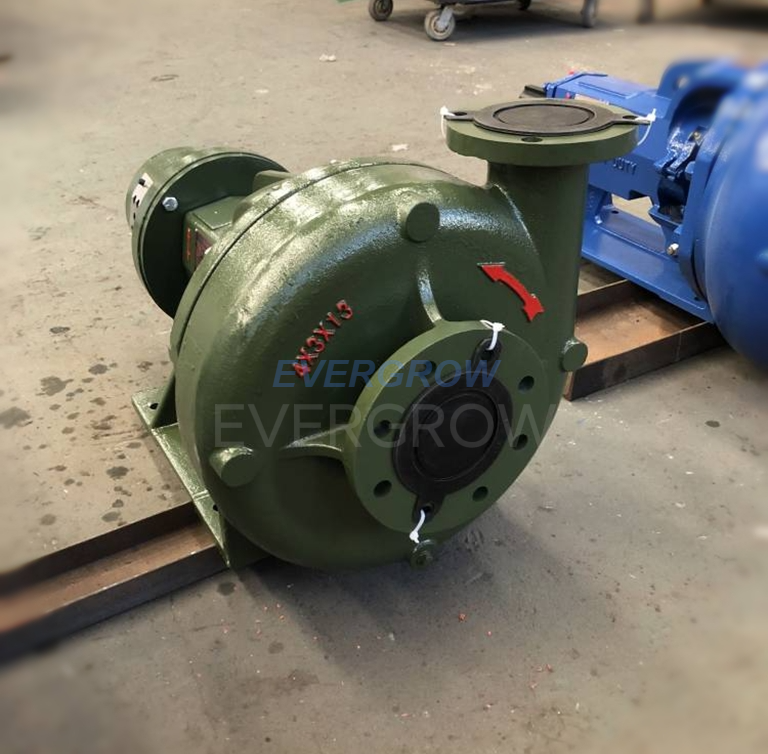

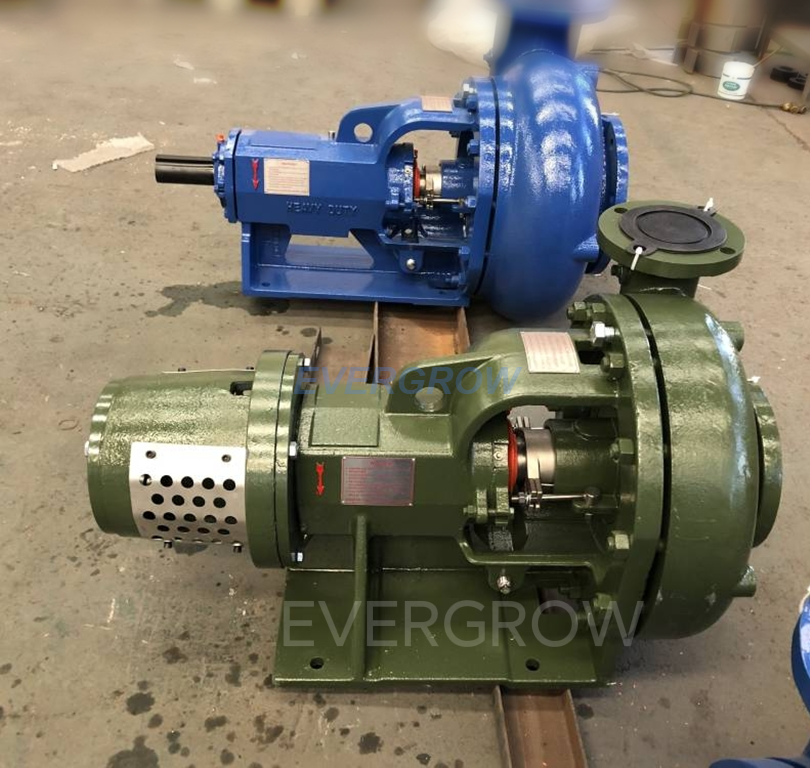

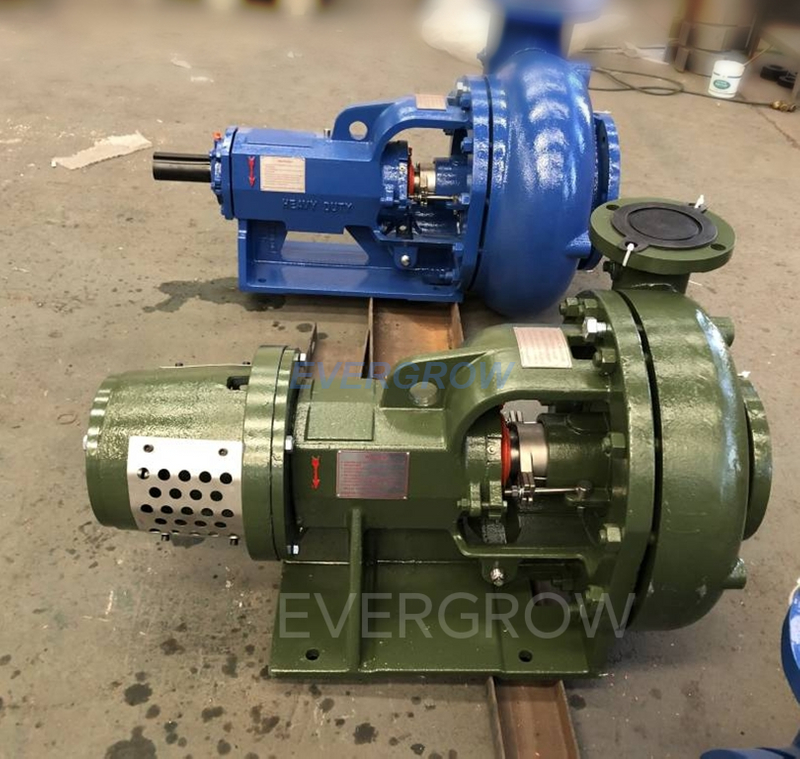

EC 250 Centrifugal Pump, 100% interchangeable with standard centrifugal pumps from MISSION, MCM, HALCO, Harrisburg
Below is a pump parts list from different brands.
We could supply all these P/N, welcome to contact us for inquiries.
| 250 Series Centrifugal Pump Diagram | ||||||
| Item No. | Description | Qty Req | MCM | Mission | Halco | Harrisburg |
| 1 | 250 Pedestal | 1 | P25PED | 20618-12-1 | H20618-12-1 | 1-250-PED |
| 2 | 250 Shaft | 1 | P25SHFT | 20612-02-33 | H20612-02-33 | 7-250-416SS |
| 3 | 250 Outboard Bearing Housing | 1 | P25OBBH | 20624-01-01 | H20624-01-01 | 4C-250-BH |
| 4 | 250 Packing Gland | 1 | P25PG | 20622A | H20622A | 9-250-GPA |
| 5 | 250 Inboard Bearing | 1 | P25IBBRG | 20615-1 | H20615-1 | 4B-250-BI |
| 6 | 250 Slinger Ring Water | 1 | P25SRW | 22210-1A | H22210-1A | 23-250-SRW-U |
| 7 | 250 Inboard Bearing Cover | 1 | P25IBBC | 20626A | H20626A | 2B-250-BC |
| 8 | 250 Outboard Bearing | 2 | P25OBBRG | 20616-1 | H20616-1 | 4A-250-BO |
| 9 | 250 Outboard Bearing Cover | 1 | P25OBBC | 20617A | H20617A | 2A-250-BC |
| 10 | 250 Graphite Packing | 1 | P25PMSG | 8264-24-OBA | H8264-24-OBA | 8A-250-PMSG |
| 250 King Packing | 1 | P25PMSK | 8474-24-1A | H8474-24-1A | 8C-250-PMSK | |
| 250 Teflon Packing | 1 | P25PMST | 8264-24-7A | H8264-24-7A | 8D-250-PMST | |
| 250 Mechanical Seal | 1 | P25MS/TT | 22451 | H22451 | 34A-250-MSI | |
| 11 | 250 Gland Bolt Assembly | 2 | P25GABA | 3701A | H3701A | 10-250-GABA |
| 12 | 250 Shaft Sleeve, Ceramic | 1 | P25SHSLVC | 20613-21G-7A | H20613-21G-7A | 7A-250-SSC |
| 13 | 250 Stuffing Box F/Packing | 1 | P25SB/PK | 20614-01-30 | H20614-01-30 | 11-250-SBPS |
| 250 Stuffing Box F/Mech. Seal | 1 | P25SB/MS | 22223-01-30A | H22223-01-30A | 11C-250-SBMSS | |
| Item No. | Description | Qty Req | MCM | Mission | Halco | Harrisburg |
| 14 | 250-2x3x13 Impeller | 1 | P25D233MRXXX | 19204-XX-30 | H19204-XX-30 | 1225231XXX |
| 250-3x4x13 Impeller | 1 | P25D343MRXXX | 19206-XX-30 | H19206-XX-30 | 1225341XXX | |
| 250-4x5x14 Impeller | 1 | P25D454MRXXX | 19224-XX-30 | H19224-XX-30 | 1225451XXX | |
| 250-5x6x11 Impeller | 1 | P25D561MRXXX | 19121-XX-30 | H19121-XX-30 | 1225561XXX | |
| 250-5x6x14 Impeller | 1 | P25D564MRXXX | 19121-XX-30 | H19121-XX-30 | 1225564XXX | |
| 250-6x8x11 Impeller | 1 | P25D681MRXXX | 19116-XX-30 | H19116-XX-30 | 1225681XXX | |
| 250-6x8x14 Impeller | 1 | P25D684MRXXX | 19116-XX-30 | H19121-XX-30 | 1225681XXX | |
| 15 | 250-2x3x13 Housing Assembly | 1 | P25D233H | 19203-01-30A | H19203-01-30A | 142523HAS |
| 250-3x4x13 Housing Assembly | 1 | P25D343H | 19205-01-30A | H19205-01-30A | 142534HAS | |
| 250-4x5x14 Housing Assembly | 1 | P25D454H | 19222-01-30A | H19222-01-30A | N/A | |
| 250-5x6x11 Housing Assembly | 1 | P25D561H | 19122-01-30A | H19122-01-30A | 1425561HAS-11 | |
| 250-5x6x14 Housing Assembly | 1 | P25D564H | 19123-01-30A | H19123-01-30A | 1425561HAS-14 | |
| 250-6x8x11 Housing Assembly | 1 | P25D681H | 19763-01-30A | H19763-01-30A | N/A | |
| 250-6x8x14 Housing Assembly | 1 | P25D684H | 19117-01-30A | H19117-01-30A | 142568HAS | |
| 15b | 250 Replaceable Wear Pad | 1 | P25DCWP | |||
| Casing wear plate 6х5х14 | 1 | P25CWP564 | 19123-01-30A | H2504-01-30A | ||
| Casing wear plate 8х6х14 | 1 | P25CWP684 | 19117-01-30A | H2506-01-30A | ||
| 16 | 250 Housing Stud W/Nut | 12 | P25HSN |  3862-76/3932-61 | H3862-76/3932-61 | 15-250-HSN |
| 17A | 250 Fluid End Gasket Kit | P25FEGK | 10399-46-1A | H10399-46-1A | 31-250-FEGK | |
| 17 | 250 Housing Gasket | 1 | P25HG | 10399-46-1 | H10399-46-1 | 13C-250-HGA |
| 18 | 250 Impeller Seal-O ring | 1 | P25IMS | 19110-72 | H19110-72 | 12B250-ISOR |
| 19 | 250 Shaft Sleeve Seal-Oring | 1 | P25SSS | 7496-236 | H7496-236 | 7B-250-SSOR |
| 20A | 250 Oil Seal kit | P250SK | 20619A | H20619A | 33-250-GSK | |
| 20 | 250 Inboard Bearing Oil Seal | 1 | P25IBBOS | 20619-01 | H20619-01 | 5B-250-OGSI |
| 21 | 250 Inboard Exclusion Seal | 1 | P25IBBES | 20620-01 | H20620-01 | 5C-250-SEXI |
| 22 | 250 Outboard Bearing Oil Seal | 1 | P25OBBOS | 20619-02 | H20619-02 | 5A-250-OGSO |
| 23A | 250 Power End Gasket Kit | P25PEGK | 20625A | H20625A | 32-250-PEGK | |
| 23 | 250 Inboard Bearing Cover Gasket | 1 | P25IBBCG | 20625 | H20625 | 3A-250-BCG |
| 24 | 250 Outbd Bearing Hsg.Seal-Oring | 1 | P250BBHS | 7496-253 | H7496-253 | 4D-250-BHOR |
| 25 | 250 Outbd Brg. Cover Seal-Oring | 1 | P250BBCS | 7496-26 | H7496-26 | 3B-250-BCOR |
| 26 | 250 Bearing Lock Nut Kit | 1 | P25BLNK | 6123-4A | H6123-4A | 4E-250-BBLNA |
| Note: XX or XXX indicates Impeller Size | ||||||
The manufacturer's names or trademarks used are solely for identification purposes and are not intended by Linhai Evergrow to cause confusion as to the source, sponsorship, or quality of the parts.
