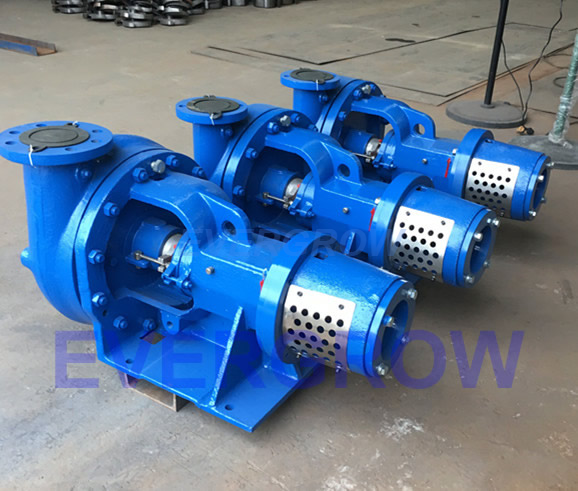

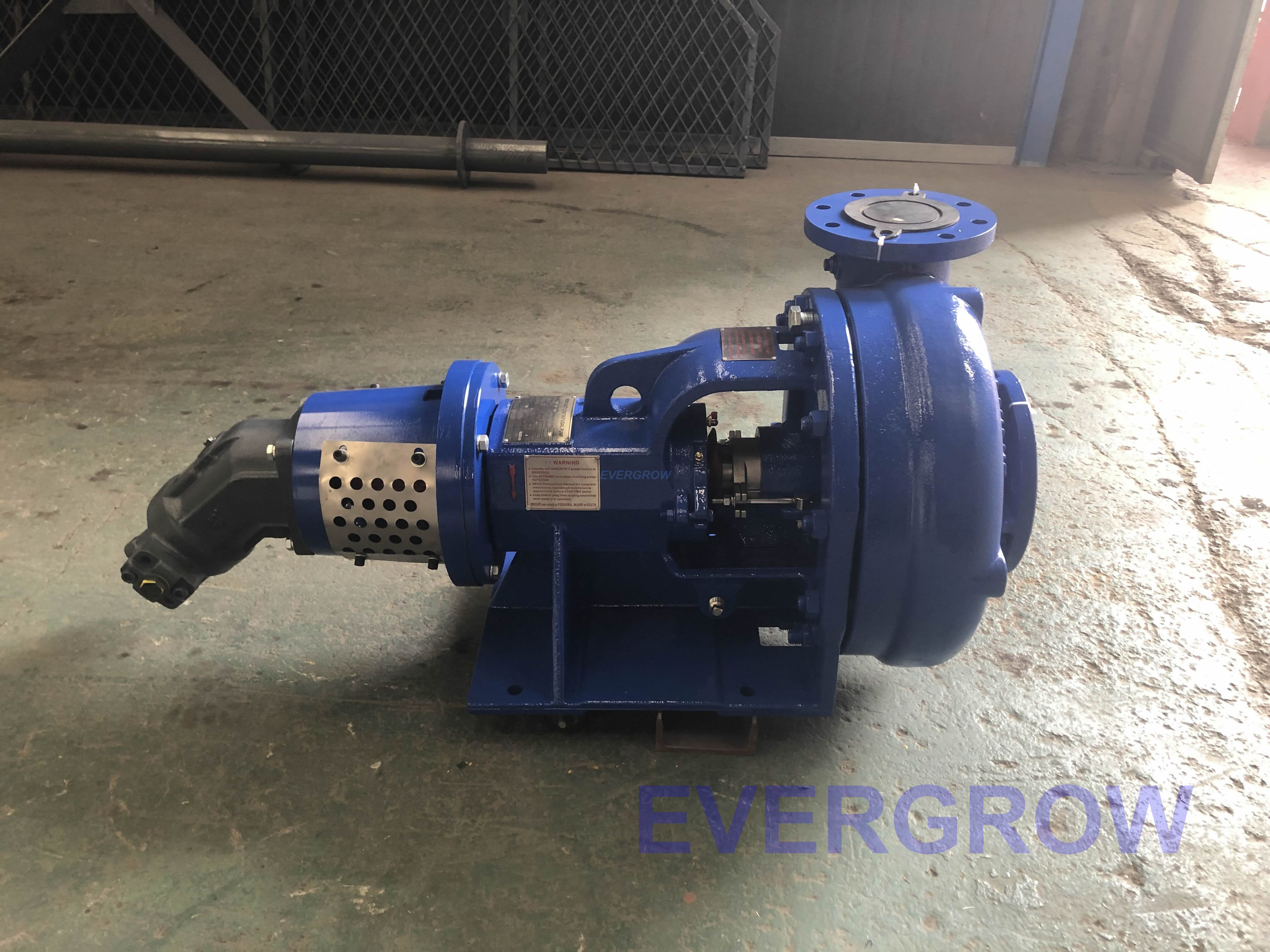

EG Sandmaster pump 5X4X14 Short Frame Centrifugal Pump

EVERGROW Sandmaster Pump Designs:

• Compact heavy-duty frame design for small space;

• Multiple application in the oil and gas industrial;

• Full open impeller reduces shaft loading;

• Replaceable stuffing box cover,

• Available in hard ductile iron, high chrome alloy fluid ends(casing, impeller, wear pad, stuffing box), customized fluid ends in stainless steel or aluminum bronze acceptable;

• Available in 8 different size, 3x2, 4x3, 5x4, 6x5, 8x6, 10x8;

• One-piece concentric and thicker casing with same power end;

• SKF bearings or equal;

• Oil or grease lube available; oil lube is for speeds in excess of 2400rpm; 3500rpm is available for 3x2x13 and 4x3x13 pump;

• Completely interchangeable with Mission™ Sandmaster™ and MCM™ Mud Master™ and all other popular brand design in the market;

• Spare parts are interchangeable with the standard model.

• The pumps can be unitized with hydraulic motors driven.

EVERGROW centrifugal Sandmaster pumps to suit for all kinds of drilling sand pump application. Bare shaft pumps, matching motors are available from 7.5KW to 90KW, with rotation 800, 1000, 1150,1450, 1750 to 3500 RPM at 50Hz or 60Hz.

The model 10x8x14 and 8x6x14 centrifugal sandmaster pump used on solid control system over 3000 meter-long drilling rigs, with big viscosity and heavy specific gravity drilling fluid. 8x6x11 centrifugal mud solid control feeding pump applies to under 3000 meter-long drilling rigs, and it also can be used to supply mud to triplex mud pump as a filling pump. 6×5×11 centrifugal pump applies to truck-mounted drilling rigs or pocket drilling rigs. 4x3x13 drilling centrifugal pump is usually used as measuring pump or replenishment pump. 3x2x13 model pump is usually used as clean water pump.
