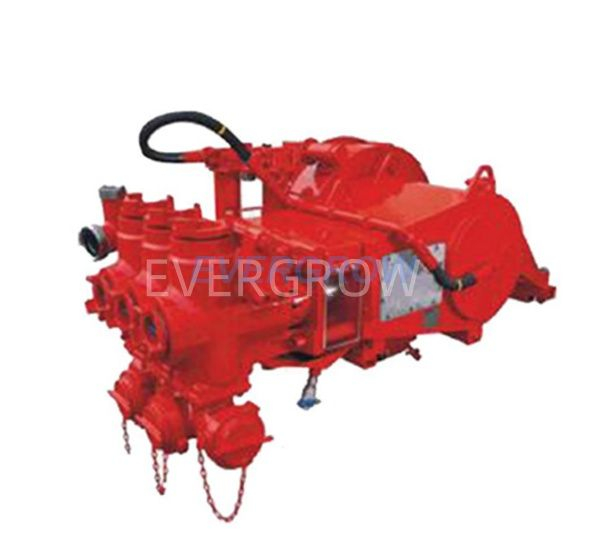

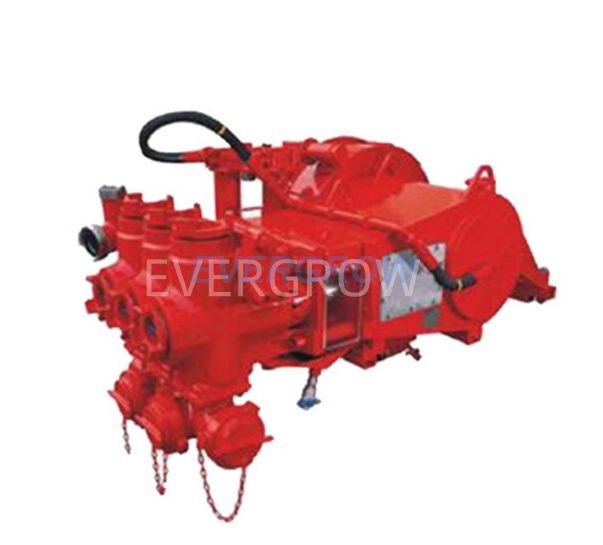

EG3-400 triplex plunger pump is a new type of horizontal single action, offset, reciprocating triplex plunger pump, which consists of three parts: the power end, gearbox, and fluid end, the maximum brake horsepower is 600BHP.
This pump has the advantages of small volume, large power, high pressure, large displacement, etc. This triplex pump is mainly used for cementing, fracturing, and acidizing equipment. It’s the first choice for pressure cementing equipment.
Specifications
Max Brake Horsepower | 600 BHP (447KW) |
Connection Rod Load(Max) | 180,000lbf (800KN) |
Stroke | 8"(203.2mm) |
Transmition | Turbine Drive |
Speed Ratio | 8.6:1 |
Size-LxWxH | 77.36*39.44*46.81 in 1965*1002*1189mm |
Weight | 5500lb(2500kg) |
EG3-400 triplex plunger pump is a new type of horizontal single action, offset, reciprocating triplex plunger pump, which consists of three parts: the power end, gearbox, and fluid end, the maximum brake horsepower is 600BHP.
This pump has the advantages of small volume, large power, high pressure, large displacement, etc. This triplex pump is mainly used for cementing, fracturing, and acidizing equipment. It’s the first choice for pressure cementing equipment.
Specifications
Max Brake Horsepower | 600 BHP (447KW) |
Connection Rod Load(Max) | 180,000lbf (800KN) |
Stroke | 8"(203.2mm) |
Transmition | Turbine Drive |
Speed Ratio | 8.6:1 |
Size-LxWxH | 77.36*39.44*46.81 in 1965*1002*1189mm |
Weight | 5500lb(2500kg) |
