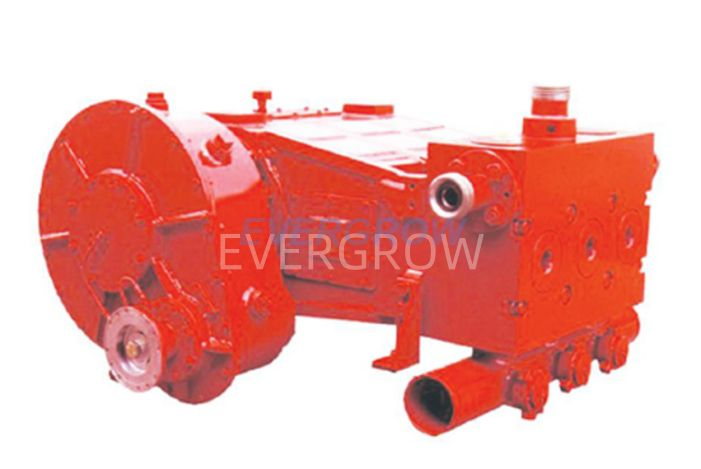

Model EG3-600S is a classic pump developed from Practical experience and applicable for Fracturing, Cementing, Sand proof, acidizing, etc. small-scale fracturing operations. etc. This Pump is directly connected with the plunger and the cross head, reducing the pump's length so that it is widely used in a duplex double pump that looks good for cementing trucks or skids. The pump can be disposed of on the device so that the pipe layout is simple and, the operation is convenient.
Specifications
Max Brake Horsepower | 600 BHP (447KW) |
Connection Rod Load(Max) | 100,000lbf (445KN) |
Stroke | 6"(152.4mm) |
Speed Ratio | 4.6:1 |
Size-LxWxH | 51.17*55.84*26.9 in |
Weight | 4600lb(2086kg) |
Model EG3-600S is a classic pump developed from Practical experience and applicable for Fracturing, Cementing, Sand proof, acidizing, etc. small-scale fracturing operations. etc. This Pump is directly connected with the plunger and the cross head, reducing the pump's length so that it is widely used in a duplex double pump that looks good for cementing trucks or skids. The pump can be disposed of on the device so that the pipe layout is simple and, the operation is convenient.
Specifications
Max Brake Horsepower | 600 BHP (447KW) |
Connection Rod Load(Max) | 100,000lbf (445KN) |
Stroke | 6"(152.4mm) |
Speed Ratio | 4.6:1 |
Size-LxWxH | 51.17*55.84*26.9 in |
Weight | 4600lb(2086kg) |
