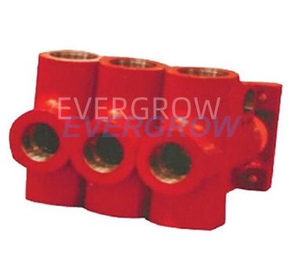

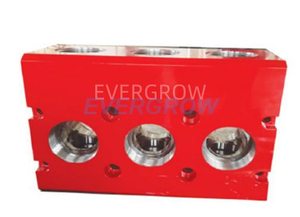

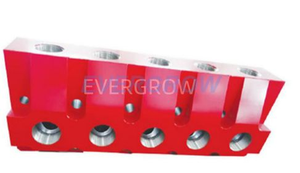

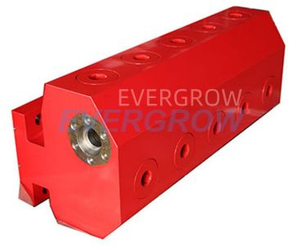

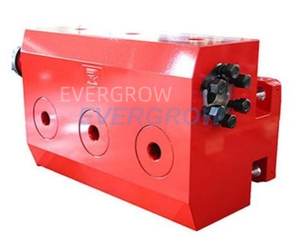

Fracturing Pump Fluid End
Our fluid ends are designed to get the job done. They are made from high-strength forged steel. For a smoother flow, each fluid end is precision machined at the intersecting bore with a unique combination of taper and radius. The internals are then polished for a finishing touch.
Fracturing Pump Parts
The fracturing pump fluid end blocks and spares are 100% interchangeable to SPM, Gardner Denver, OFM, Serva, FMC.
We can supply the Spare Parts for the Pump Models as follow:
SPM TWS250、TWS400、TWS600S、TWS900、QWS1000S、
TWS2500、QWS3500、TMP1650
FMC WT2400,WQ2700,WQ3000
Gardner Denver GD1600,GD2250,GD2500,GD3000
OFM OFM600,OFM1000,OFM2000,OFM2250,OFM2500,OFM500W,
OFM500WN,OFM600S,OFM2800Q,OFM2500Q
Serva TPD600,TPH400,QPA1000,TPA2250,QPA2500

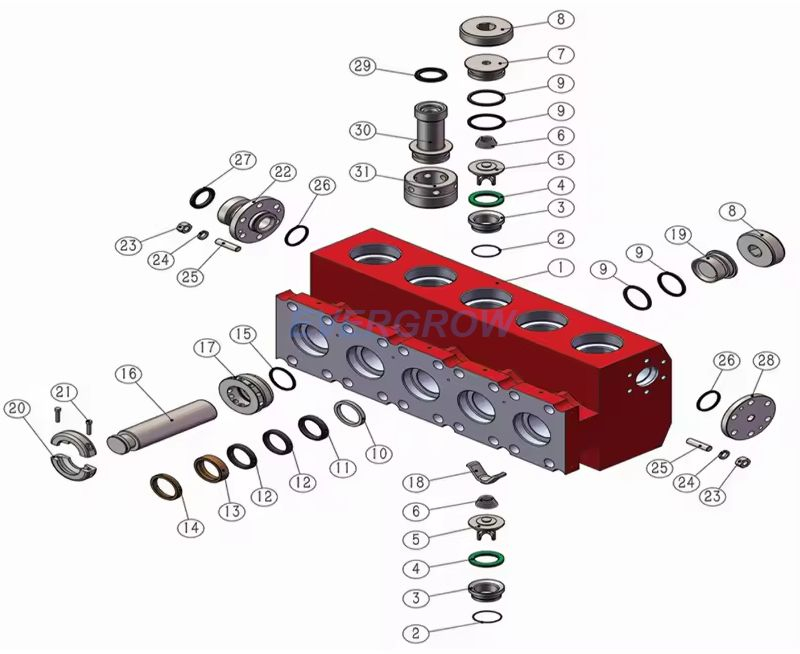

Frac Pump Fluid End drawing-For Quintuplex series- SPM2500
| ITEM | DESCRIPTION | QTY |
| Fluid end assy | 1 | |
| 1 | Fluid end | 1 |
| 2 | O Ring or valve | 10 |
| 3 | Valve seat | 10 |
| 4 | Valve insert | 10 |
| 5 | Valve body | 10 |
| 6 | Spring | 10 |
| 7 | Discharge Block | 3 |
| 8 | Retainer Cover | 10 |
| 9 | Retainer block | 20 |
| 10 | Guide Ring | 5 |
| 11 | Rubber Packing | 10 |
| 12 | Febric Packing | 10 |
| 13 | Copper Sleeve | 5 |
| 14 | Oil Ring | 5 |
| 15 | Oil seal | 5 |
| 16 | Plunger | 5 |
| 17 | Packing Nut | 5 |
| 18 | Centering Rack | 5 |
| 19 | Side Block | 5 |
| 20 | Plunger Clamp | 5 |
| 21 | Clamp Screw | 10 |
| 22 | Flange, discharge | 1 |
| 23 | Flange Screw | 12 |
| 24 | Gasket | 12 |
| 25 | Double-head bolt | 12 |
| 26 | Plunger seal | 2 |
| 27 | Union seal, 3" | 1 |
| 28 | Flange, Pressure | 1 |
| 29 | Union seal, 2" | 1 |
| 30 | Sensor Block | 1 |
| 31 | Sensor Cap | 1 |
