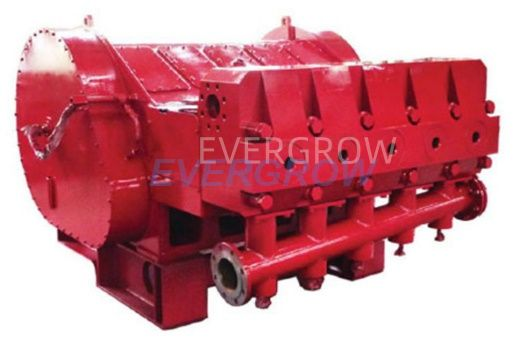

2800 Quintuplex large power plunger pump applicable for Fracturing, Cementing, Sand proof, acidizing, etc. The maximum pressure is up to 140MPa. This is a large power quintuplex plunger pump on the market. The modern design and penetrating type connecting bolts make the connection more reliable; the removable packing boxes make maintenance more convenient.
Specification
Max Brake Horsepower | 2800BHP(2088KW) |
Connection Rod Load(Max) | 229,305lbf (1020KN) |
Stroke Length | 8" (203.2mm) |
Transmition | Double Cylinder Gear |
Speed Ratio | 6.333:1 |
Size-LxWxH | 91.38*91.42*47.44 in 2321*2321*1205mm |
Weight | 20,900 lb(9,500kg) |
2800 Quintuplex large power plunger pump applicable for Fracturing, Cementing, Sand proof, acidizing, etc. The maximum pressure is up to 140MPa. This is a large power quintuplex plunger pump on the market. The modern design and penetrating type connecting bolts make the connection more reliable; the removable packing boxes make maintenance more convenient.
Specification
Max Brake Horsepower | 2800BHP(2088KW) |
Connection Rod Load(Max) | 229,305lbf (1020KN) |
Stroke Length | 8" (203.2mm) |
Transmition | Double Cylinder Gear |
Speed Ratio | 6.333:1 |
Size-LxWxH | 91.38*91.42*47.44 in 2321*2321*1205mm |
Weight | 20,900 lb(9,500kg) |
